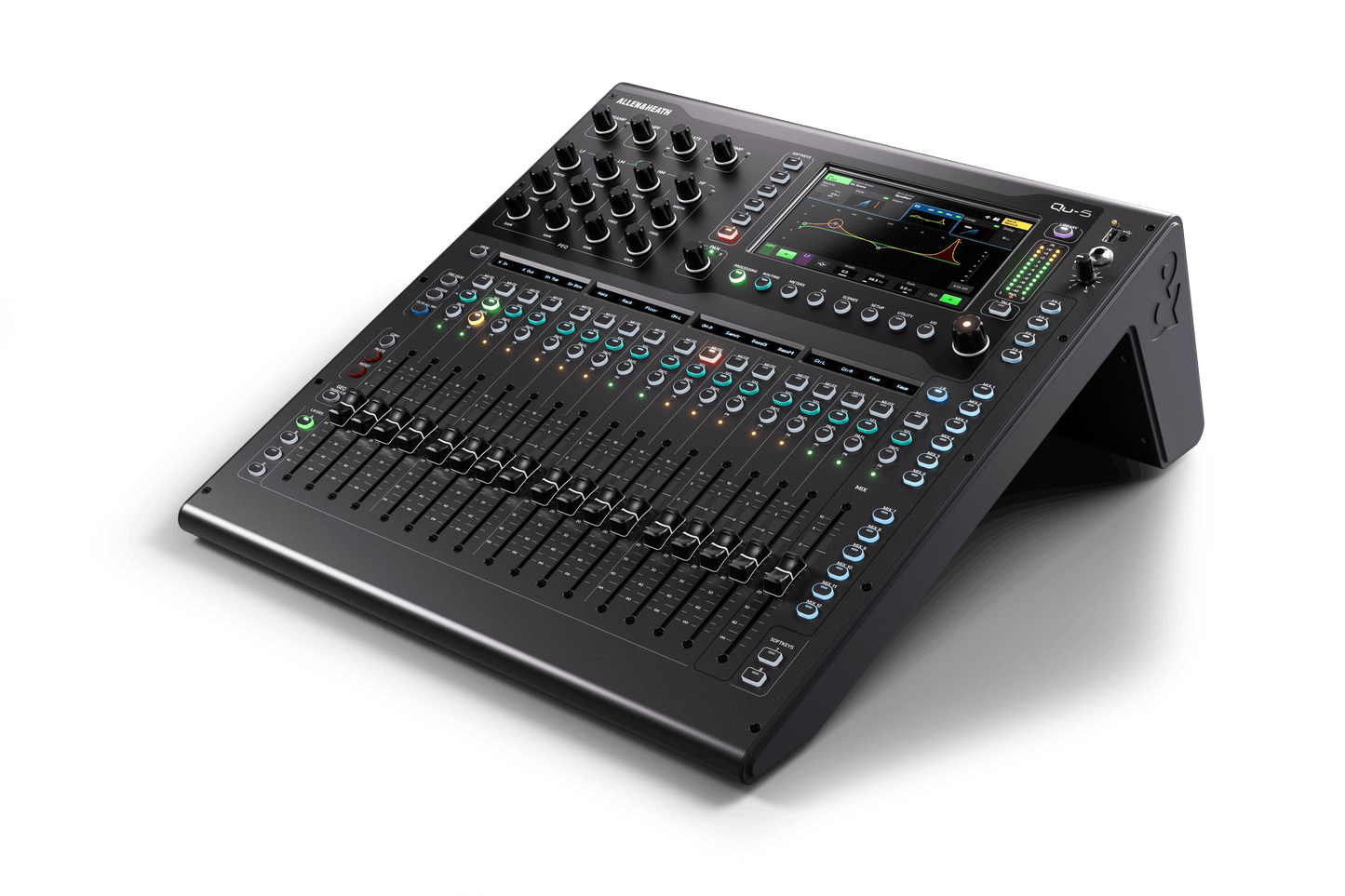

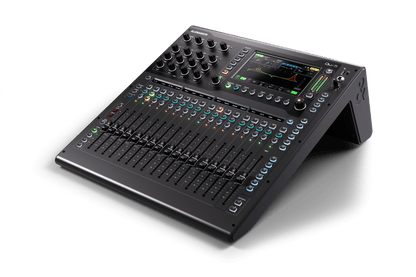

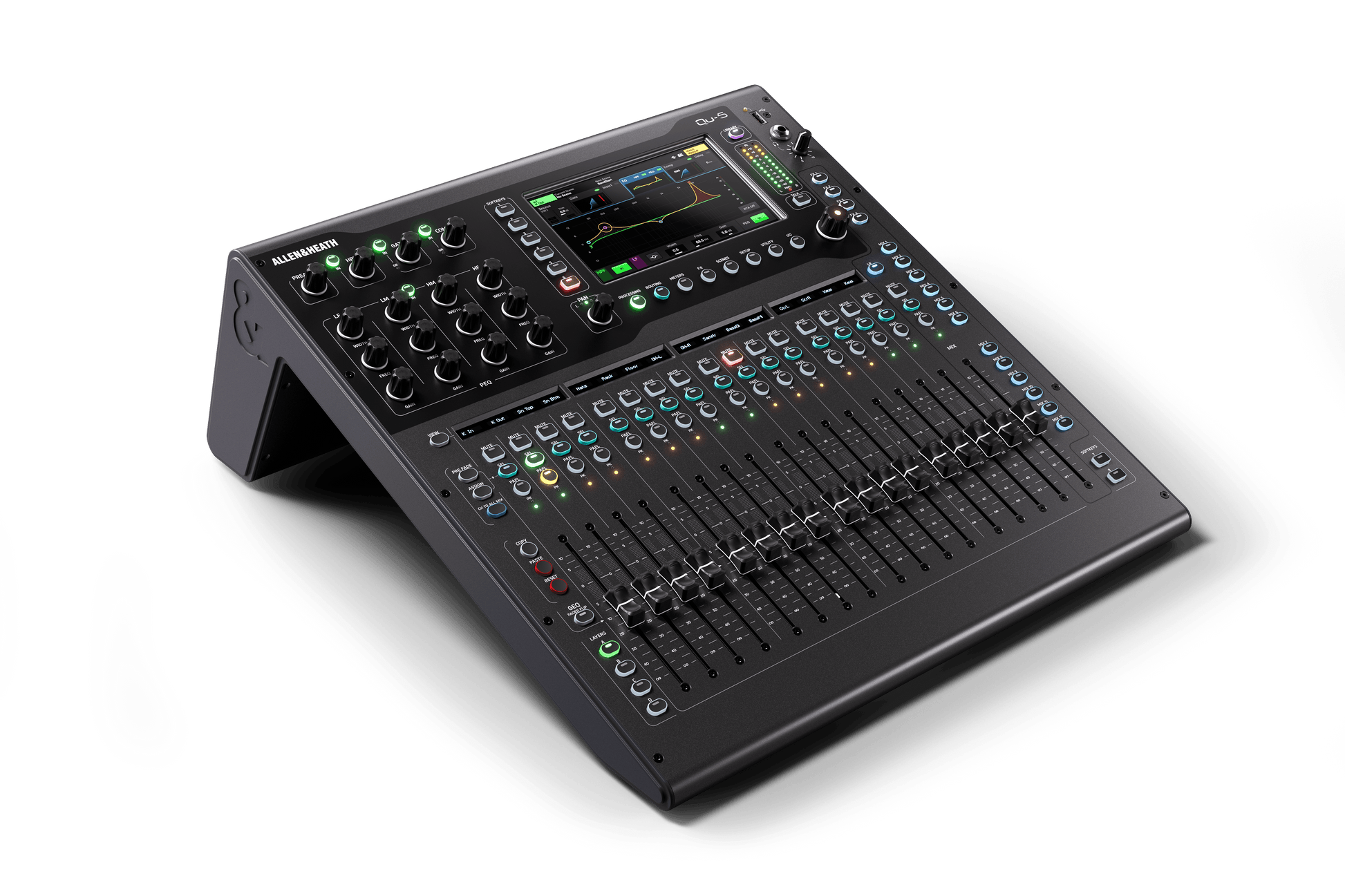

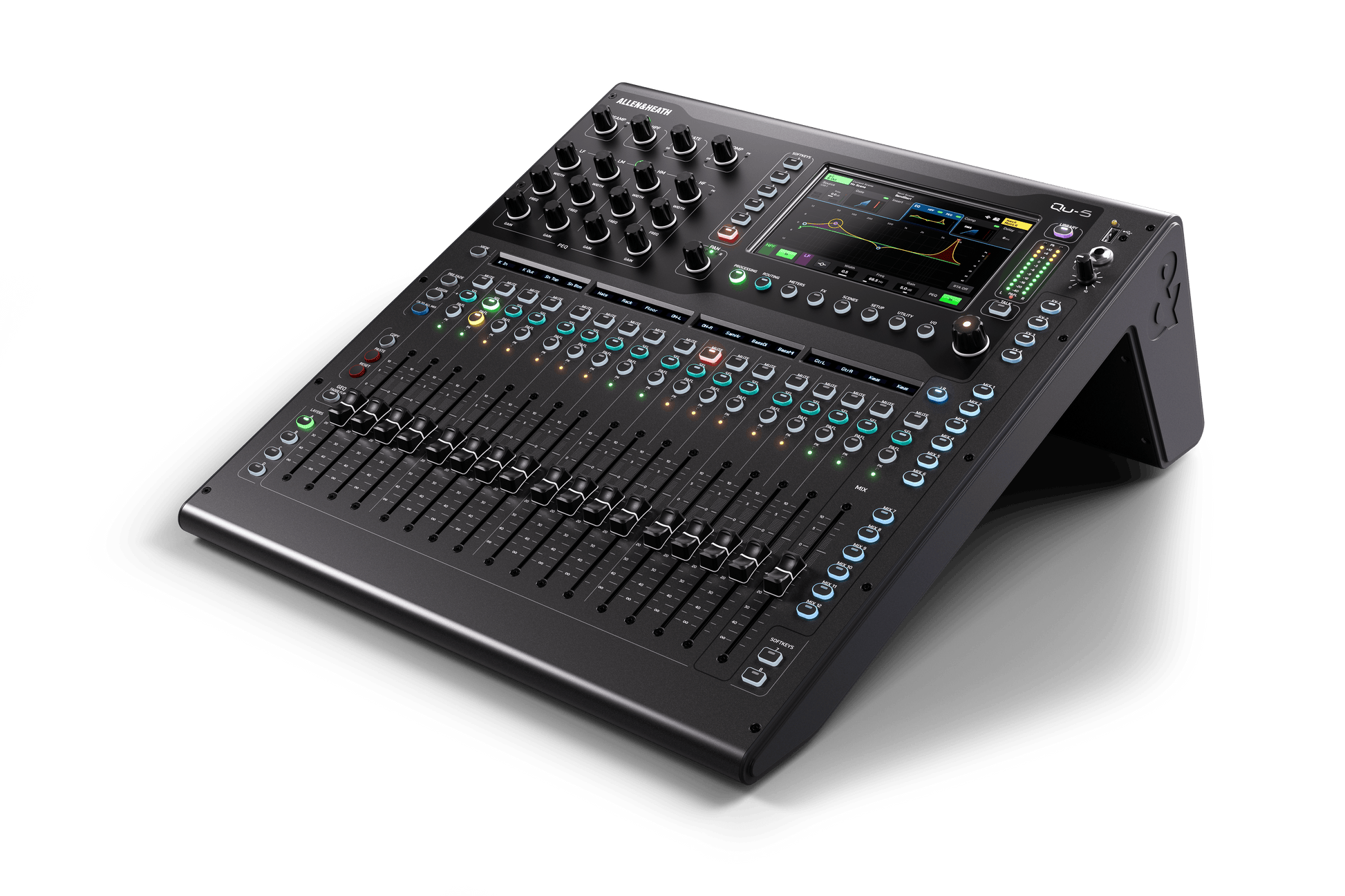

Allen & Heath QU-5 38-Input Digital Mixer

Allen & Heath QU-5 Digital Mixer

The Allen & Heath QU-5 is a next-generation digital mixer designed for professional live sound, studio recording, and installed audio applications. Powered by a 96kHz XCVI processing core, it delivers exceptional audio quality, ultra-low latency, and powerful DEEP processing capabilities for precise and dynamic mixing.

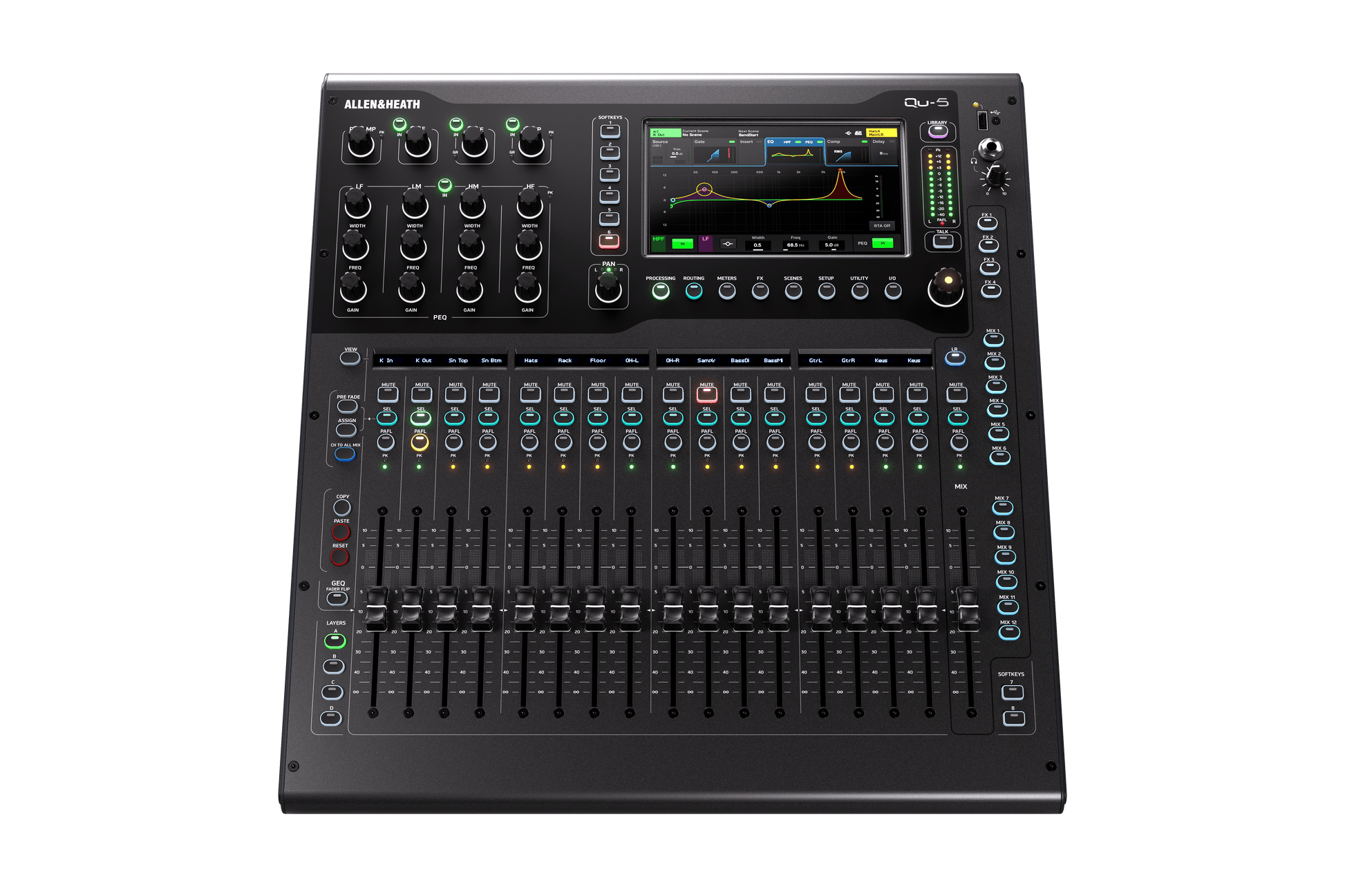

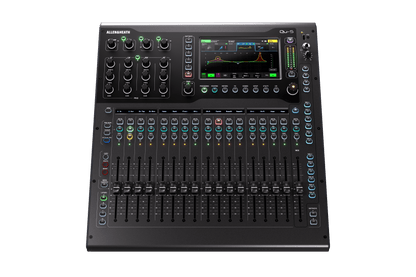

With 38 inputs to mix and fully flexible routing across four customisable layers, the QU-5 offers a highly adaptable workflow. Its intuitive interface combines a responsive 7” touchscreen, channel displays, and 17 motorised faders for fast, hands-on control.

Advanced tools such as Gain Assistant and Feedback Assistant streamline setup, while integrated multitrack recording via USB-C and SD card ensures seamless capture in any environment. Designed for flexibility, the QU-5 also supports expansion via SLink for connection to stage boxes and other systems.

Key Features

• 38-input digital mixer with flexible routing and mix architecture
• 96kHz XCVI core for high-resolution audio and low latency
• 17 motorised 100mm faders for precise control
• 7” capacitive touchscreen with redesigned user interface
• 4 customisable fader layers for efficient workflow
• Gain Assistant for fast and accurate level setup
• Feedback Assistant with automatic frequency control
• 6 built-in multi-FX engines with dedicated stereo returns
• DEEP Processing ready for advanced audio processing options
• Remote control via Windows, macOS, iOS, and Android apps
• SLink port for connection to Allen & Heath I/O expanders
• Rack mountable design (optional kit)

Specifications

• Inputs to Mix: 38 (32 mono/linkable + 3 stereo)
• Mix Outputs: 12 mixes + main LR
• Matrix: 4 mono/linkable matrix mixes
• Sample Rate: 96kHz
• Processing Core: XCVI

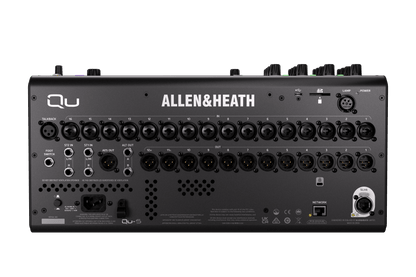

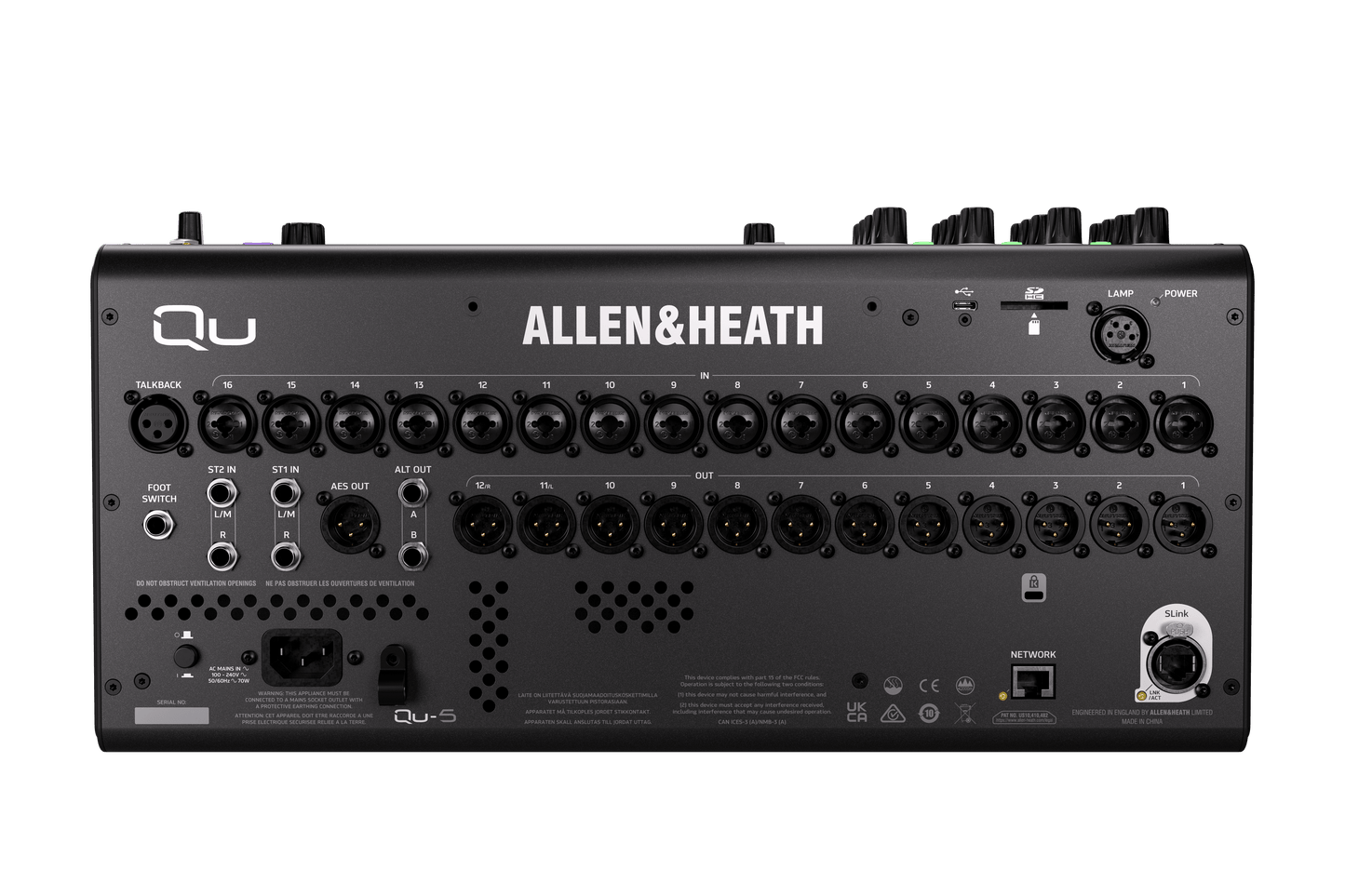

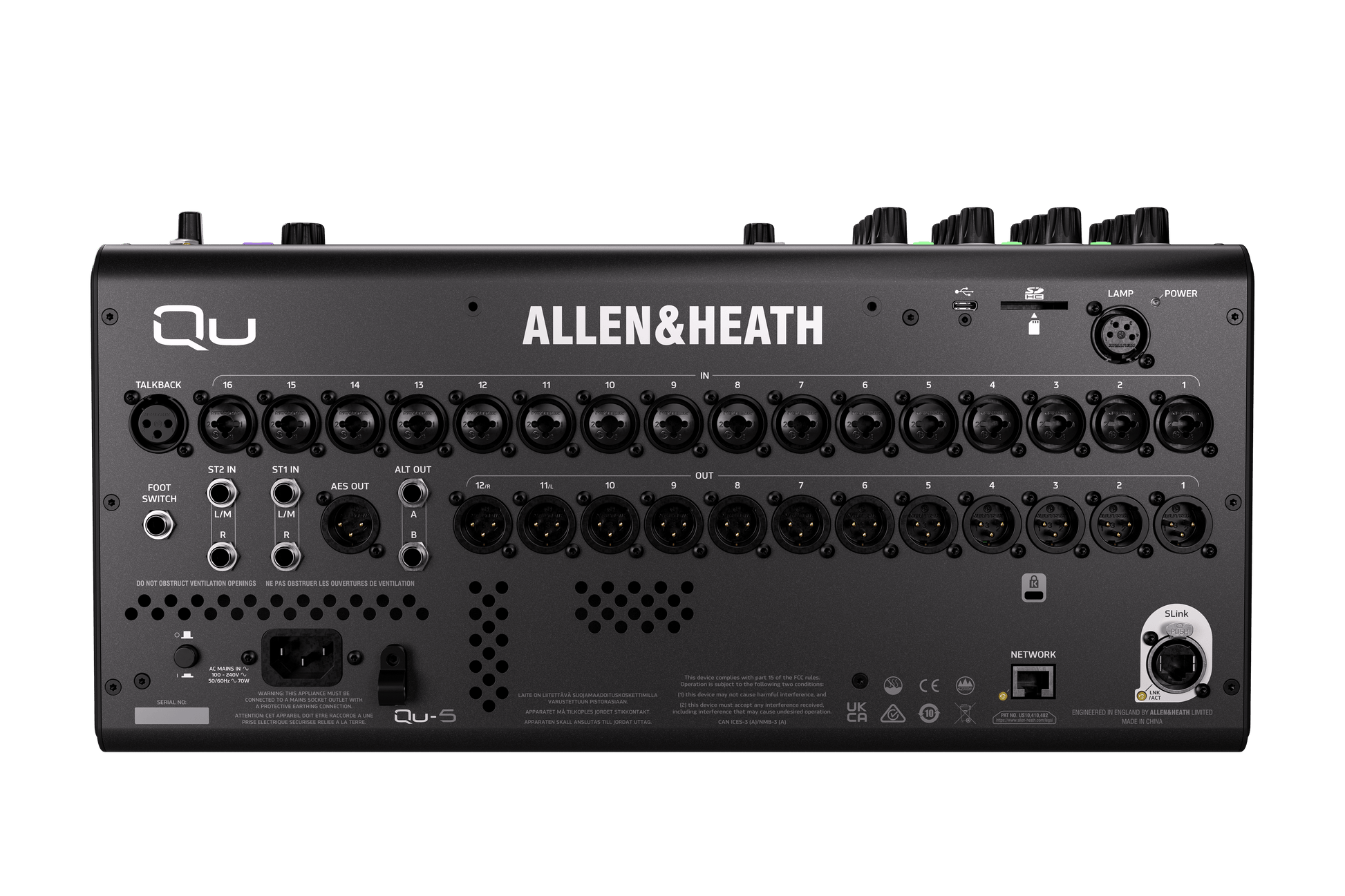

• Mic/Line Inputs: 16 XLR/TRS combo inputs
• Stereo Inputs: 2 stereo line inputs (TRS)
• Outputs: 12 XLR outputs + 2 TRS outputs + AES3 stereo out
• Talkback: 1 XLR talkback input
• FX Engines: 6 multi-FX engines
• USB Interface: USB-C 32x32 multitrack audio
• Recording: SD card (multitrack) + USB-A stereo recording
• Expansion: 128x128 SLink port for I/O expansion
• Control: 7” touchscreen, 17 motorised faders, 8 SoftKeys
• Networking: RJ45 for remote control
• Headphone Output: Stereo
• Mounting: 19” rack mountable (optional kit)

Combining powerful processing, flexible connectivity, and intuitive control, the Allen & Heath QU-5 is a versatile digital mixer built for modern live and studio environments.
