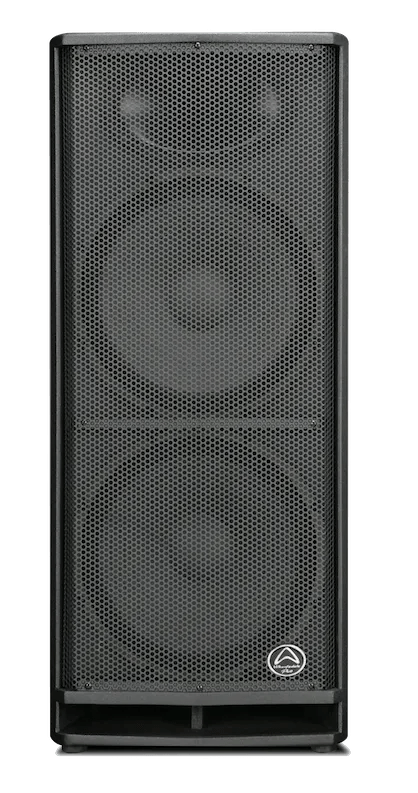

Wharfedale DVP AX215 Powered Speaker

DVP-AX215 Active Loudspeaker

The DVP-AX215 is a powerful dual 15-inch, two-way bi-amplified active loudspeaker designed for professional live sound, DJs, events, venues, and mobile entertainment. Combining Class D amplification, advanced DSP processing, and dual custom Wharfedale Pro low-frequency drivers, the DVP-AX215 delivers exceptional output, extended bass response, and impressive coverage for demanding applications.

With 570W continuous power (1140W peak), a maximum SPL of 133dB, and six selectable DSP presets, the DVP-AX215 provides powerful full-range performance while remaining easy to configure for a wide variety of venues and acoustic environments.

Key Features

• Dual 15" two-way bi-amplified active loudspeaker
• 570W continuous Class D amplification
• 1140W peak power output
• Maximum SPL of 133dB
• Dual custom 15" LF drivers with 2.5" voice coils
• 1.75" IRIS X titanium compression driver
• 90° x 60° wide dispersion pattern
• Integrated 6-position DSP with application-specific presets
• Frequency range: 40Hz – 20kHz
• Balanced XLR and 1/4" line/mic inputs
• Switchable Loop/Mix XLR output
• Rugged MDF enclosure with steel grille

DSP Presets

Built-in DSP allows quick optimization for different applications with six selectable modes:

• Flat
• Monitor
• Speech
• Bass
• Punch
• Live

Applications

• Live music performances
• DJ events and dance venues
• Corporate presentations
• Houses of worship
• Nightclubs and entertainment venues
• Mobile sound reinforcement systems

Technical Specifications

• System Type: Active Full-Range Loudspeaker
• Configuration: 2-Way
• LF Drivers: 2 x 15"
• HF Driver: 1.75" Titanium Compression Driver
• Continuous Power: 570W
• Peak Power: 1140W
• Maximum SPL: 133dB
• Frequency Range (-10dB): 40Hz – 20kHz
• Frequency Response (±3dB): 45Hz – 18kHz
• Coverage: 90° x 60°
• Amplifier Type: Class D
• Inputs: 2 x XLR, 2 x 1/4" Line/Mic
• Output: Switchable Loop/Mix Balanced XLR
• Enclosure: MDF Construction
• Weight: 34.3kg
