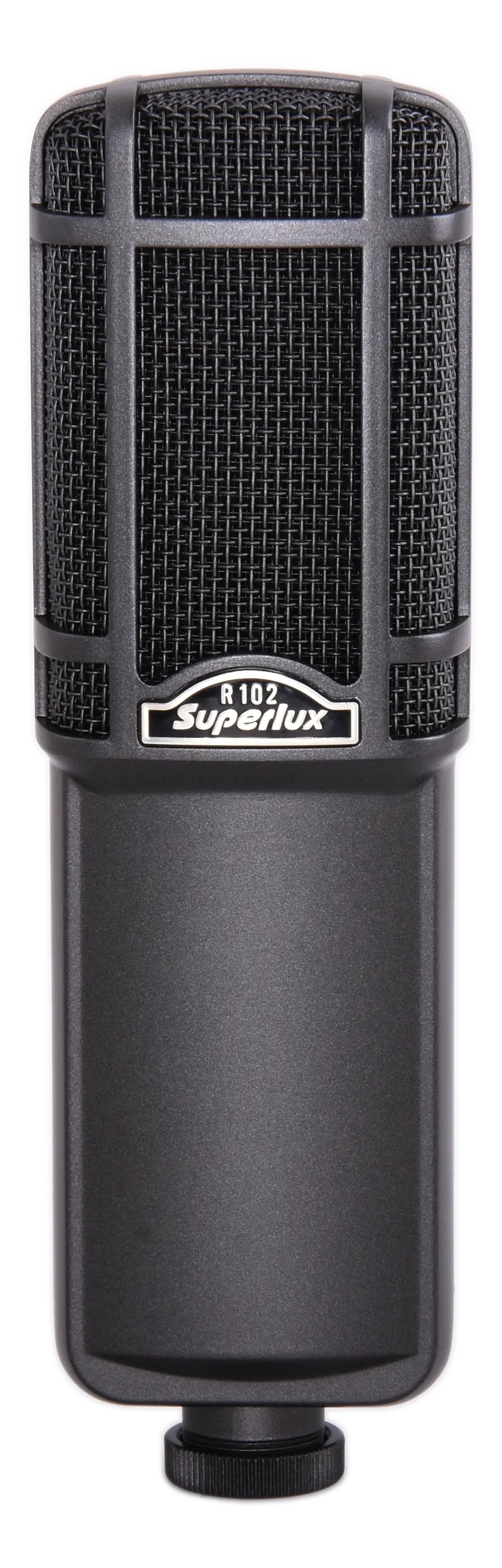

Superlux R102 Ribbon Microphone
R102 series active ribbon microphone is designed specifically for broadcast and television recording. It not only boasts the high sensitivity and flat frequency response of a condenser microphone, but also offers a faster transient response
The Classic
R102 series active ribbon microphone is designed specifically for broadcast and television recording. It not only boasts the high sensitivity and flat frequency response of a condenser microphone, but also offers a faster transient response, making it one of the best-in-class microphones available today. The retro-style ribbon delivers a pure, warm tone, suitable for vocals, broadcasting, strings, symphonies, and recording. Its figure-eight directional pattern is ideal for broadcasting or Blumlein stereo recording, making it perfect for live vocal and instrument pickup.
Features
β’ Phantom power supply
β’ High sensitivity, wide dynamic range, low noise
β’ Low impedance output, low distortion
β’ Preamplifier uses special shielding to prevent magnetic field interference
β’ Stable performance, unaffected by ambient humidity and temperature
β’ Figure-8 polar pattern, sensitivity is the same on both sides
β’ Easy replacement of aluminum ribbon microphone module
Recommended Applications
β’ Radio
β’ Strings
β’ Low-frequency instruments
β’ Electric guitar
β’ Percussion
β’ Harmonica
β’ Vocals
Technical Specifications
Cap: Aluminum ribbon, 2.5 ΞΌm;Β
Directivity: Figure-8;
Frequency Response: 25-15,000 Hz
Sensitivity: -40 dBV/Pa (10 mV)
Impedance: 250 Ξ©;
Minimum Load: 1,000 Ξ©;
Signal-to-Noise Ratio: 76 dB ; Equivalent
Noise: 18 dB;
Maximum SPL: 138 dB;
Dynamic Range: 120 dB;
Power Requirements: 48V DC, 4 mA
Finish: Dark Grey;
Connectors: XLR3M;
Dimensions: 60 Γ 44 Γ 196 mm (2.63" Γ 1.73" Γ 7.72")
Net Weight: 500 g (17.6 oz)
Included accessories
β’ U-shaped stand (with cable clip)
β’ Right-angle plug
β’ 6M microphone cable
