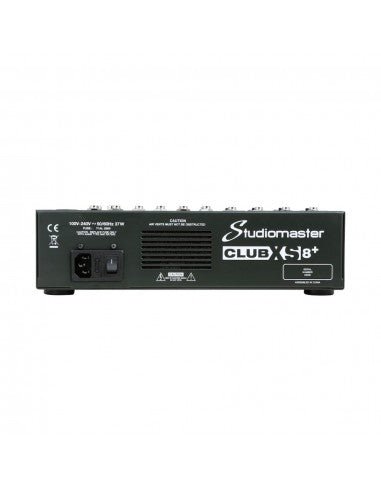

Studiomaster CLUB XS8+ 8-Channel Compact Mixer

The Studiomaster CLUB XS8+ delivers professional-grade versatility in a compact and portable mixing console. Featuring 4 mic/line channels, 2 stereo line channels, built-in DSP effects, Bluetooth streaming, and USB/SD playback and recording, the CLUB XS8+ is ideal for live performances, rehearsal spaces, podcasts, small venues, or home studios.

Each mic/line channel includes a 3-band EQ, adjustable compressor, high-pass filter and a mute switch - perfect for vocals, instruments or line-level devices. Stereo channels come with 2-band EQ and headphone monitoring for flexible signal routing. Main outputs are balanced XLR, while auxiliaries, control-room outs and phono record/playback connectors add maximum connectivity.

Features

• 8 total inputs - 4 mic/line channels and 2 stereo line channels
• 3-band EQ on mic channels; 2-band EQ on stereo channels
• Built-in compressor & 100 Hz high-pass filter on all mic channels
• 16 high-quality DSP effects (reverb, delay, modulation, etc.)
• Bluetooth streaming for wireless playback from phone/tablet/laptop
• USB/SD media player for MP3 playback and mono recording
• Footswitch socket for hands-free DSP effects control
• Mute switch on every input channel for quick control
• Balanced XLR main outputs; jack outputs for auxiliaries and control room; RCA/phono for record & playback
• Compact, lightweight design - easy transport and setup

Specifications

• Total channels: 8 (4 mic/line, 2 stereo line)
• Mic gain range: ~6 dB to 50 dB; Line gain range: ~+10 dB to –34 dB
• Frequency response: 10 Hz – 20 kHz (+1/-3 dB)
• THD (mic channel): < 0.1%; Signal-to-Noise Ratio: ~80 dB
• Output levels: max +26 dBu (balanced), +20 dBu (unbalanced)
• EQ bands (mic): Hi 12 kHz / Mid 2.5 kHz / Low 45 Hz; Low-cut filter at 80 Hz
• Built-in DSP: 16 effects; USB/SD player: MP3 playback & mono recording
• Phantom power: +48 V (for condenser mics)
• Dimensions: approx. 305 × 80 × 365 mm; Weight: ~4.5 kg
• Power: 100–240 V AC

The Studiomaster CLUB XS8+ combines professional-level mixing capabilities, flexible connectivity, and compact design - making it perfect for live gigs, mobile rigs, podcasting, rehearsal rooms, home studios, and more.
