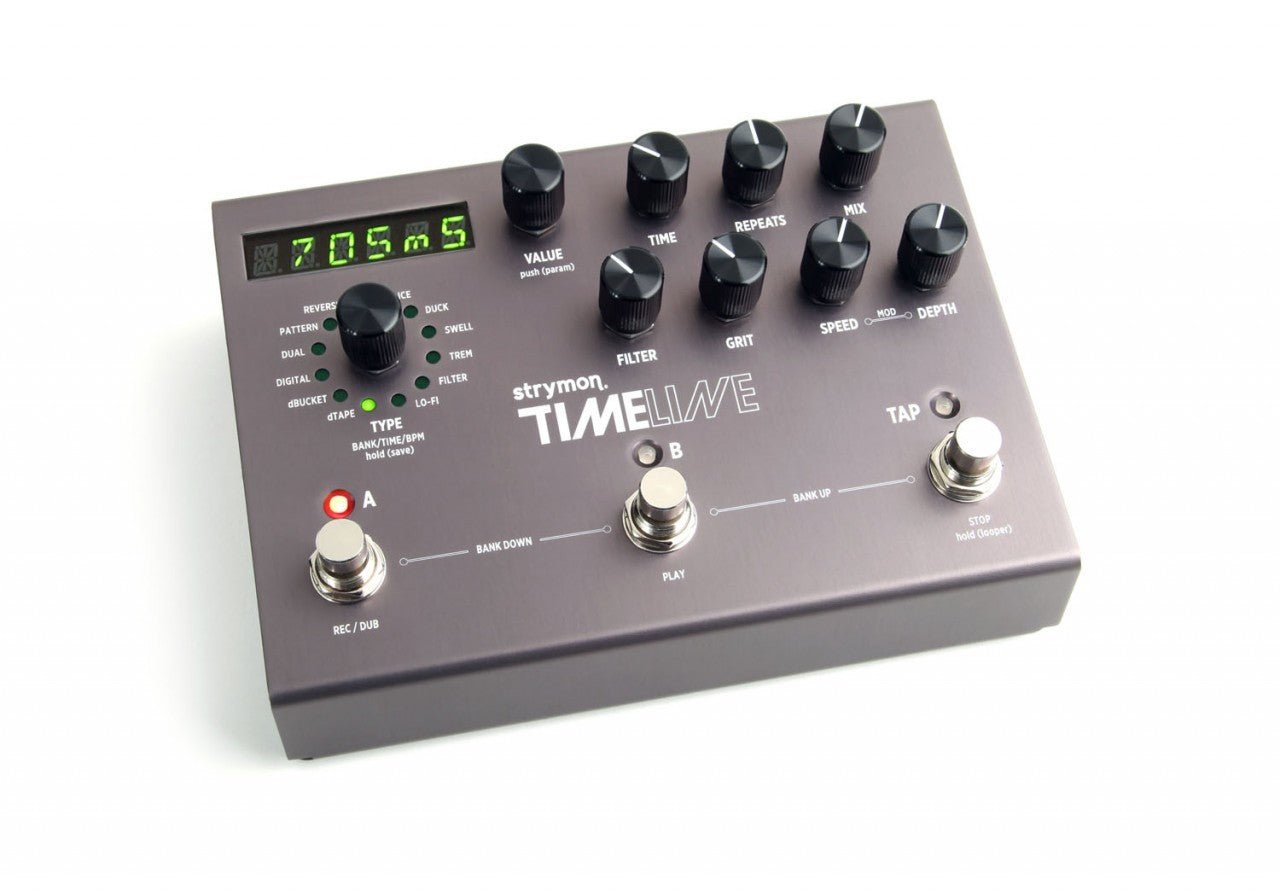

Strymon Timeline Delay Pedal

Strymon Timeline Delay

Inspiration Machine.

When we decided to create a studio-class stereo delay effects pedal, we knew we must go well beyond what has been done in the past—in sound quality, sonic flexibility, hardware design, and processing power. We spent months locked up in the Strymon sound design labs dreaming up the most spacious, lush, creative, and tweakable delay effects ever heard. It was a monumental task—a relentless study of delays and their nuances, and a continuous pursuit of innovative and musically inspirational sounds. Utilizing a ridiculously powerful SHARC DSP, every drop of processing power is harnessed.

Explore Your Creativity.

TimeLine provides you with twelve different delay machines, each with extensive control over sonic character and feel. Tweak to your hearts content and save up to 200 presets of your favorite sounds. Go from crisp and clear, studio-quality digital delays all the way to the saturated and fluctuating sounds of tape delay machines. Get warm and fuzzy analog style repeats all the way to shimmery, sparkling, and crystalline ice delays. Top it all off with full MIDI implementationand a routable, 30-second stereo looper and you’re on your way to delay bliss.

Specifications

• Hand crafted, studio-class delay algorithms deliver meticulous, detailed and nuanced delay experiences
• Twelve delay machines to choose from: Digital, Dual, Pattern, Reverse, Ice, Duck, Swell, Trem, Filter, Lo-fi, dTape™, dBucket™.
• Seven front-panel tone shaping knobs: Time, Repeats, Mix, Filter, Grit, Mod Speed, Mod Depth
• Additional menu-driven parameters deliver extremely flexible tone shaping options and complete tweakability
• 200 easily accessible and nameable presets, save and recall at the press of a switch
• Three rugged metal footswitches for preset selection, effect bypass, looper control, and Tap Tempo
• LED display for preset info, BPM/time readout, and extended parameter control
• Full MIDI implementation allows extended control for those with more complex rigs
• 30-second stereo Looper, routable pre- or post-delay, with MIDI capability.

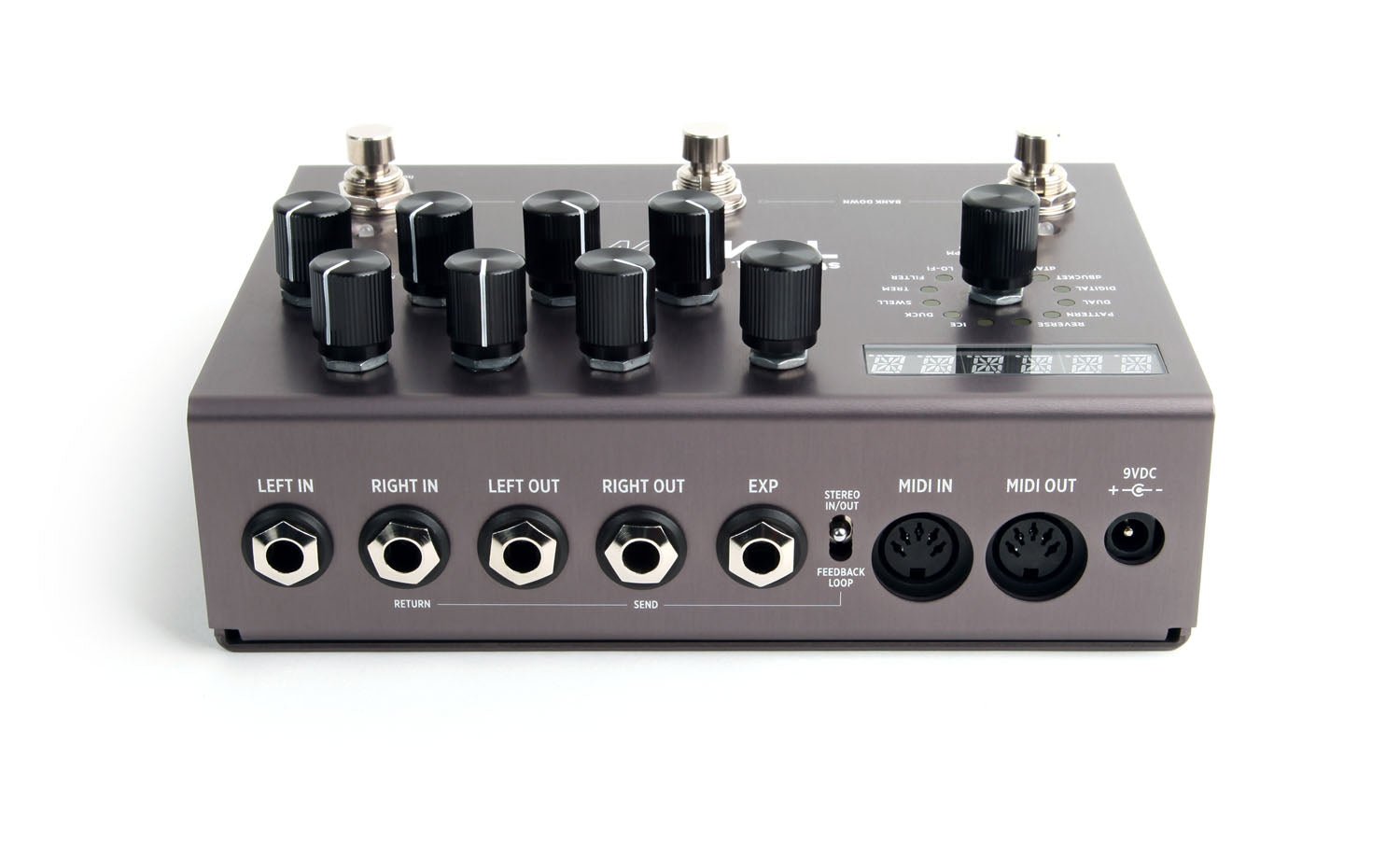

• Stereo input and output
• Expression pedal input with selectable control over knob or combination of knobs, saveable per preset (also configurable asexternal tap input)
• MIDI input and output
• Switchable I/O configuration: Stereo Out or Mono with Delay Feedback Loop Insert
• Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters
• 115dB typical signal to noise
• Analog dry path for a zero latency dry signal that is never converted to digital
• Premium analog front end and output section
• Super high performance DSP in a compact form factor
• 32-bit floating point processing
• True Bypass (electromechanical relay switching)
• Selectable Trails mode with high quality, transparent Analog Buffered Bypass, saveable per preset
• +/- 3dB Boost/Cut, saveable per preset
• Selectable Tap Subdivision, saveable per preset
• Optional Kill Dry mode mutes dry signal, for use in parallel effects loops
• Optional Global Tap Tempo mode
• Included 9V DC power supply (300mA required minimum)
• Rugged and lightweight gunmetal gray anodized aluminum chassis
• Dimensions: 6.75" wide, 5.1" deep
