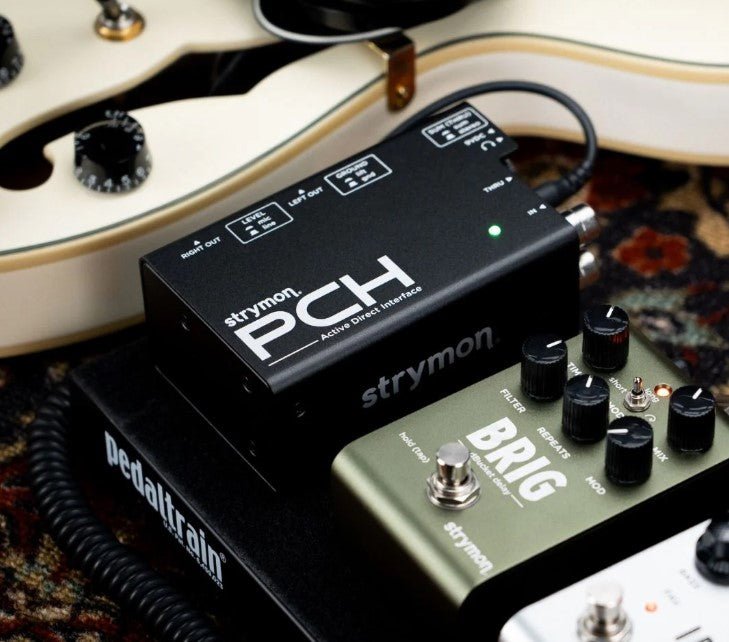

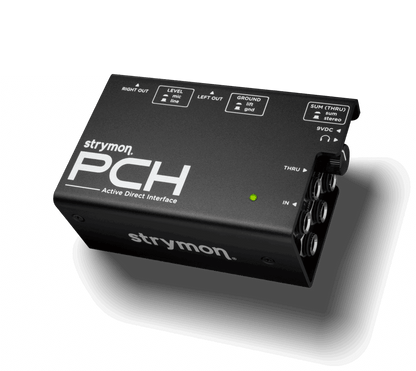

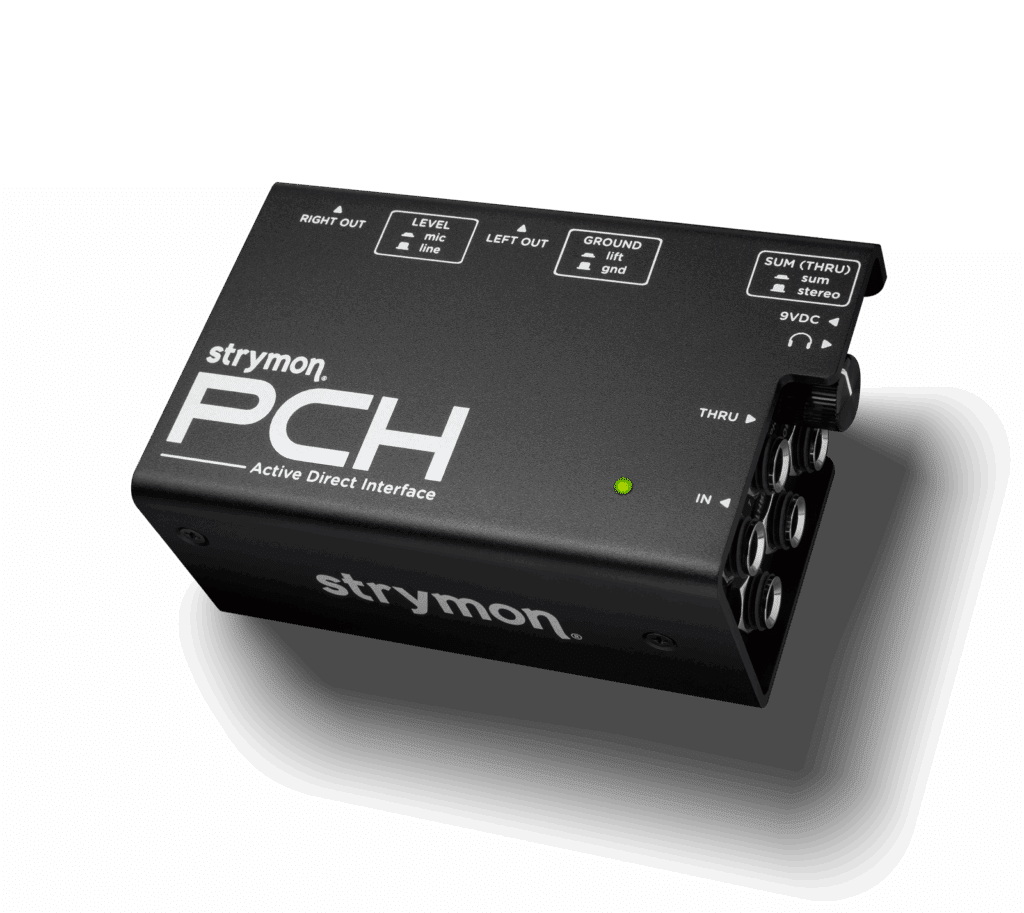

Strymon PCH Active Direct Interface
The Strymon PCH is a high-headroom, stereo active direct interface designed for pedalboards, keyboards and synth rigs. It delivers pristine signal clarity, balanced XLR outputs and an onboard console-quality headphone amp
Strymon PCH Active Direct Interface
The Strymon PCH is an advanced stereo active direct interface featuring a built-in console-quality headphone amplifier. Whether your signal chain includes guitar, bass, pedals, keyboards or synths, PCH ensures full clarity and consistencyβno matter how complex your rig.
This DI is different because it handles high-output sources with ease. Running from a 9 V DC supply internally converted to 24 V, it offers exceptional headroom and a flat, low-distortion responseβpreserving the tone of your instrument and effects chain without colouring the sound.
Specifications:

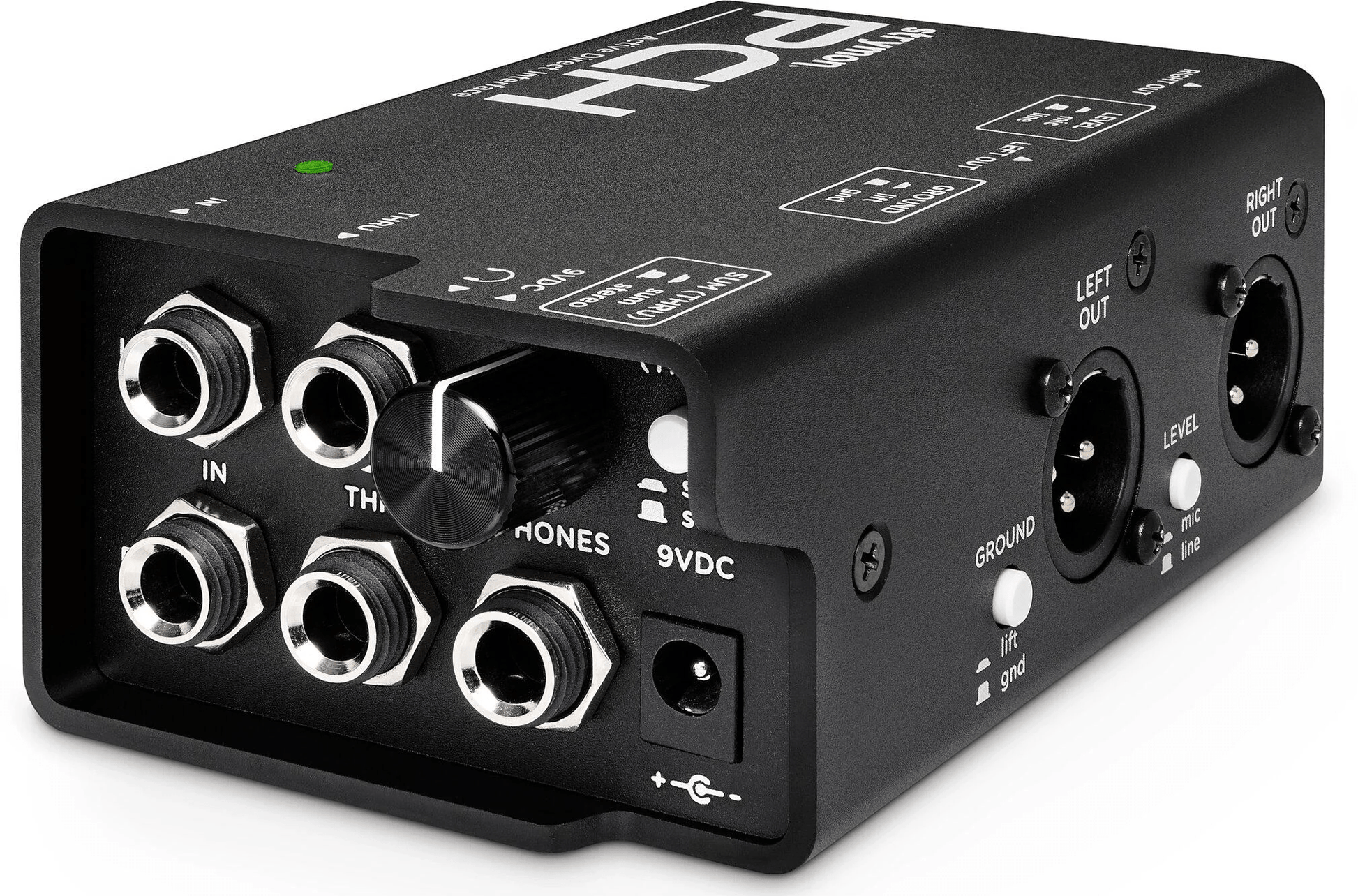

- Stereo high-impedance ΒΌβ³ inputs for one or two sources (mono or stereo operation)
- Barely transparent, bullet-proof construction with extruded 3 mm aluminium chassis and 5 mm protective ribs
- Balanced XLR Left/Right outputs (Mic/Line switchable), unbalanced ΒΌβ³ Thru outputs (mono or stereo)
- Console-quality headphone amplifier onboardβplug in headphones and monitor your full rig in stereo
- Switchable ground lift and sum-to-mono functions for full live or studio flexibility
- Extremely flat frequency response (Β±0.25 dB, 10 Hzβ80 kHz+) and very low noise floor (SNR +130 dB in line setting)
- Designed and built in the USA
Whether youβre sending your pedalboard or keyboard rig to a mixer, PA or recording interface; and whether youβre practicing via headphones or performing live, the Strymon PCH is engineered to deliver professional-level transparency and reliability.
