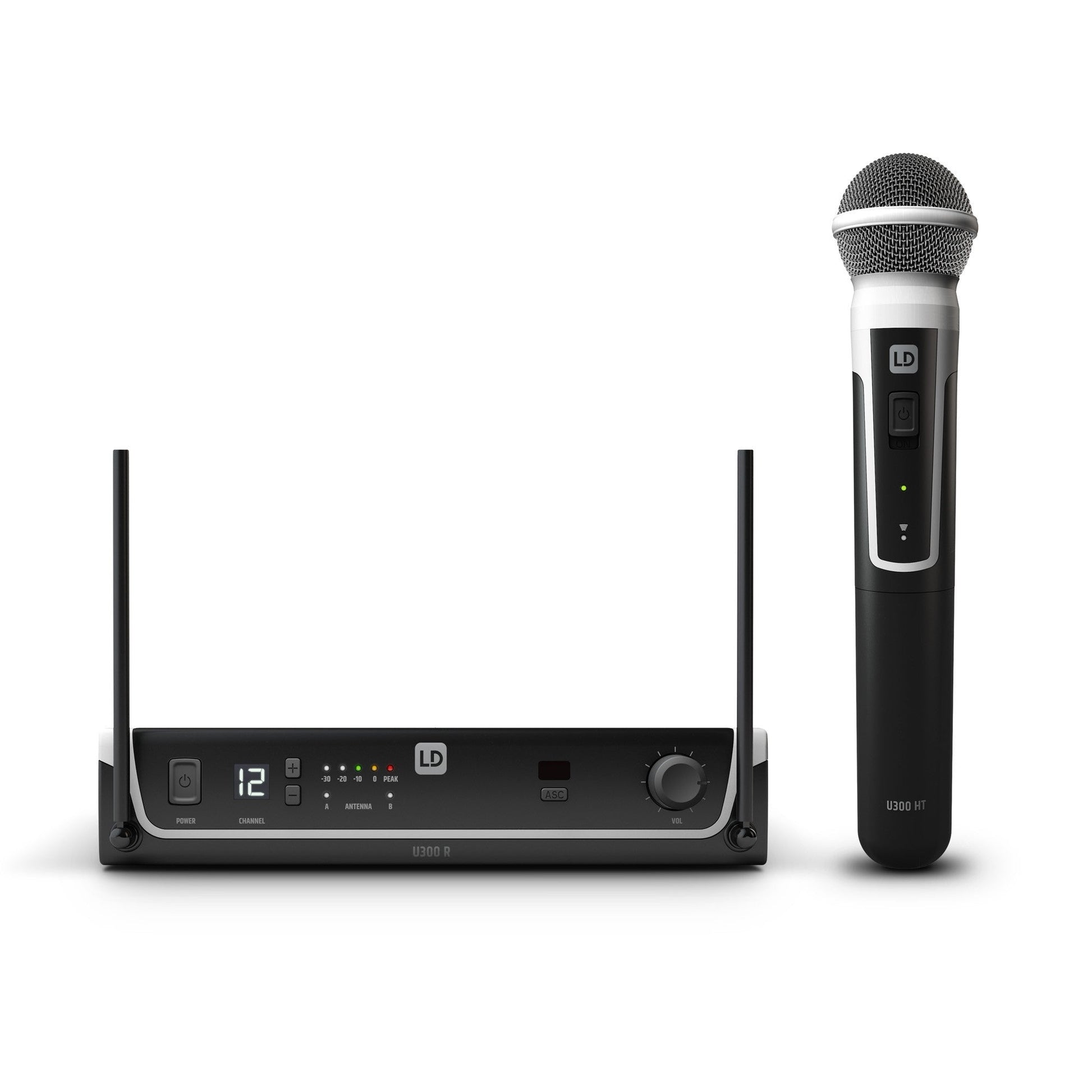

LD Systems U306 HHD Wireless Microphone System with Dynamic Handheld Microphone

LD Systems U306 HHD Wireless Microphone System with Dynamic Handheld Microphone

The LD Systems U306 HHD Wireless Microphone System is a rugged, reliable UHF diversity wireless solution designed for live vocals, stage performances, presentations, and band use. Featuring a dynamic handheld microphone with cardioid pattern and a diversity receiver, this system offers stable wireless audio with flexible connectivity options and long operating time.

Wireless Performance

• System Type: UHF diversity wireless with FM technology
• Selectable Channels: 12 for interference avoidance
• Transmission Range: Up to 100 m in ideal conditions
• Simultaneous Use: Up to 6 systems per frequency band
• Sync: One‑touch infrared (ASC) transmitter/receiver linking
• Pilot Tone Squelch: Reduces noise and dropouts
• Transmitter Run Time: Up to 10 h on 2 × AA batteries
• Frequency Range: 655 – 679 MHz

Receiver & Connectivity

• Housing: Durable metal construction
• Display: Bright LCD channel display
• Outputs: Balanced XLR and unbalanced 6.35 mm jack
• Switchable Output Level: Line or instrument level

Handheld Microphone

• Microphone Type: Dynamic handheld with cardioid pattern
• Frequency Response: 55 Hz – 16 kHz
• Operating Time: > 10 h on 2 × AA batteries
• Weight: Approx. 235 g

Specifications

• Receiver Frequency Response: 25 Hz – 16 kHz
• Total Harmonic Distortion: < 0.3 %
• Signal‑to‑Noise Ratio: ~104 dB
• Receiver Dimensions: approx. 211 × 43 × 120 mm
• Receiver Weight: approx. 700 g

This wireless system combines solid UHF performance, long battery life, and versatile audio outputs, making it ideal for vocalists, presenters, and band applications where dependable wireless audio is needed.
