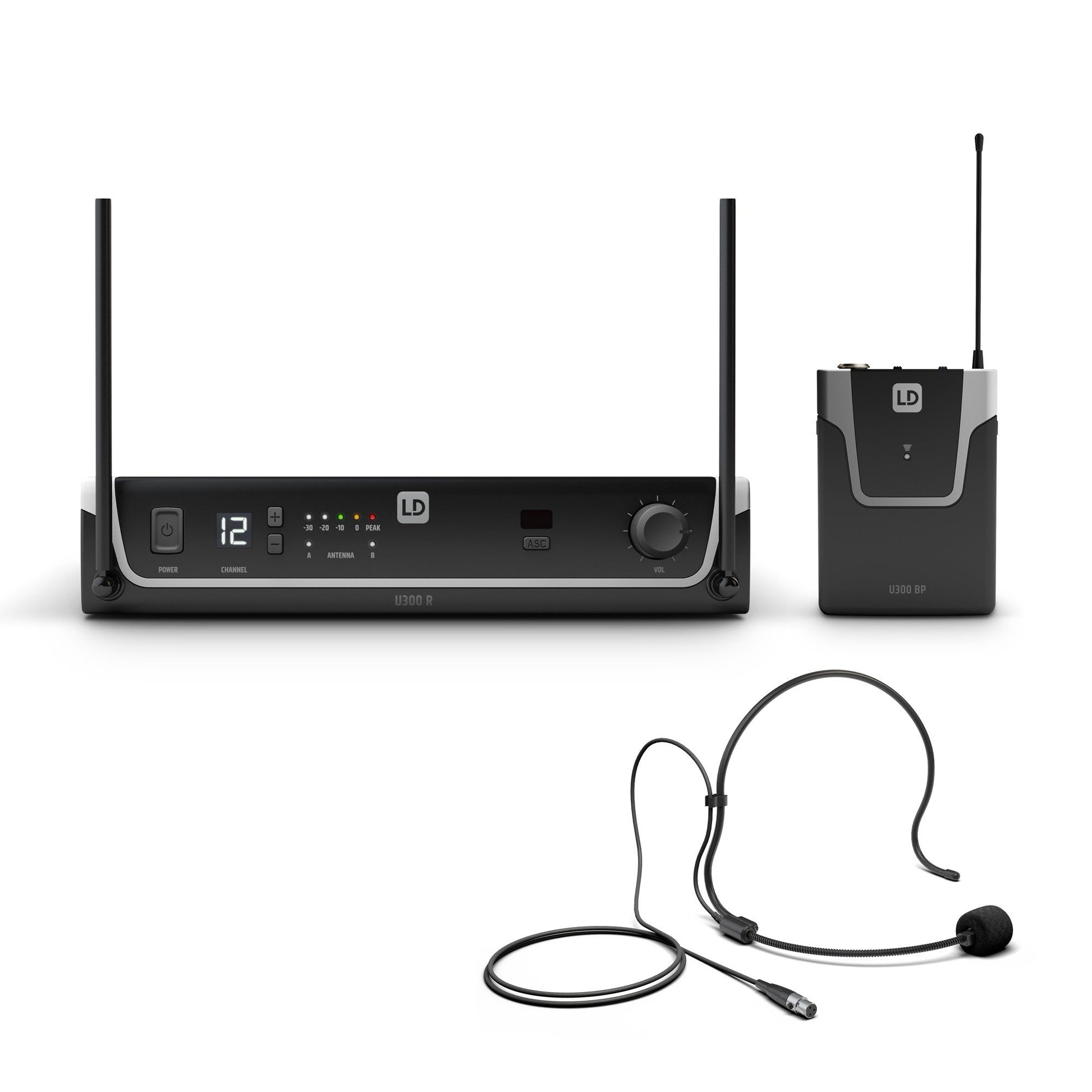

LD Systems U306 BPH Wireless Microphone System with Bodypack and Headset

LD Systems U306 BPH Wireless Microphone System with Bodypack and Headset

The LD Systems U306 BPH Wireless Microphone System is a reliable UHF diversity wireless solution designed for performance, teaching, presentations, and coaching use. Featuring a bodypack transmitter and headset microphone, it provides clear audio transmission with stable wireless performance and flexible connectivity.

Wireless Performance

• System Type: UHF diversity wireless with FM technology
• Frequency Range: 655 – 679 MHz
• Selectable Channels: 12 for interference avoidance
• Transmission Range: Up to 100 m in ideal conditions
• Sync: One‑touch infrared (ASC) transmitter/receiver linking
• Pilot Tone Squelch: Reduces dropouts and noise
• Transmitter Run Time: Up to 10 h on 2 × AA batteries

Receiver & Connectivity

• Housing: Metal construction for durability
• Display: Bright LCD channel display
• Outputs: Balanced XLR and unbalanced 6.35 mm jack
• Switchable Output Level: Line or instrument level

Transmitter & Headset

• Transmitter Type: Bodypack with mini‑XLR input
• Input Options: Compatible with dynamic or condenser microphones and instruments
• Headset Mic: Cardioid condenser headset included
• Weight: Lightweight bodypack for comfortable wear
• Battery Tester: Built‑in for quick status checks

Specifications

• Frequency Response: Approx. 25 Hz–16 kHz
• Signal‑to‑Noise Ratio: ~104 dB
• Receiver Dimensions: ~211 × 43 × 120 mm
• Receiver Weight: ~700 g

With robust wireless performance, flexible input options, and long transmitter battery life, the U306 BPH system is ideal for wireless speech, instrument or headset audio in teaching, events or live performance settings.
