Korg Nu:Tekt NTS-4 DIY Mixer Kit

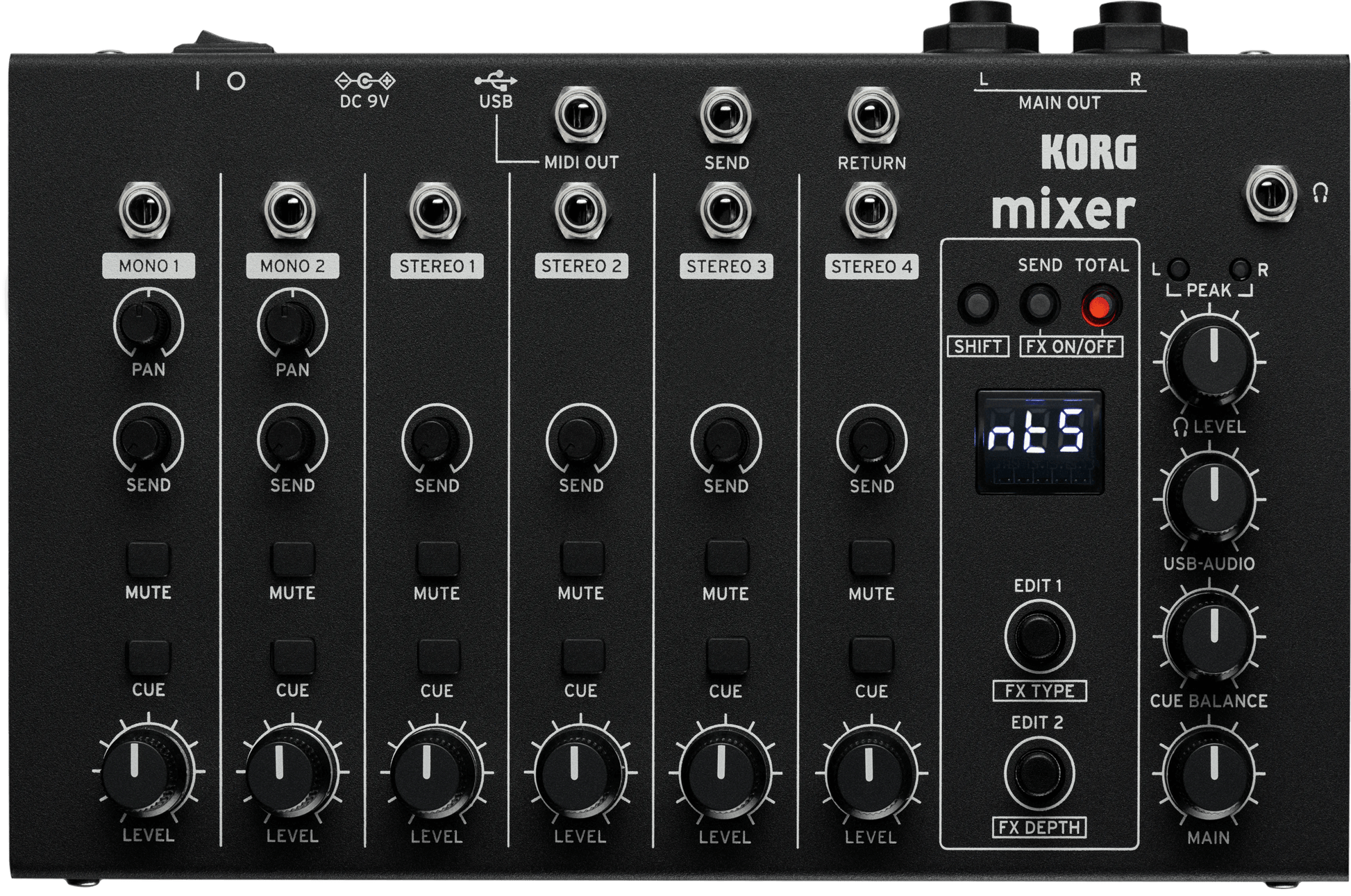

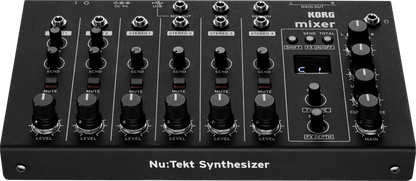

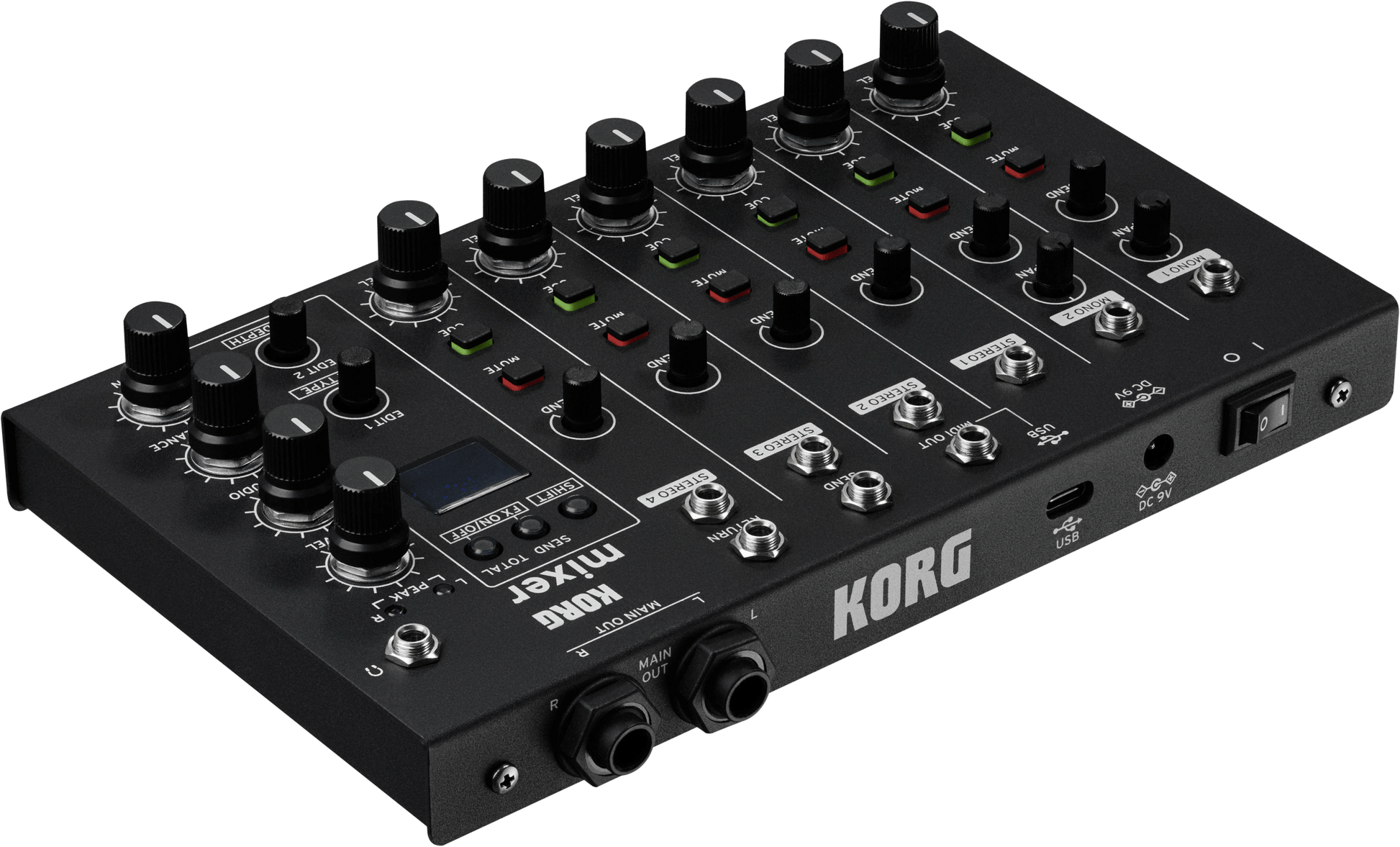

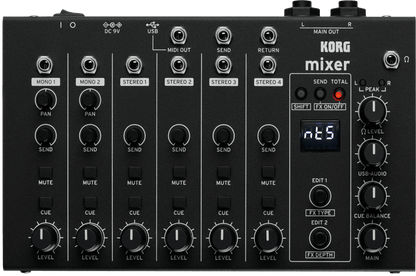

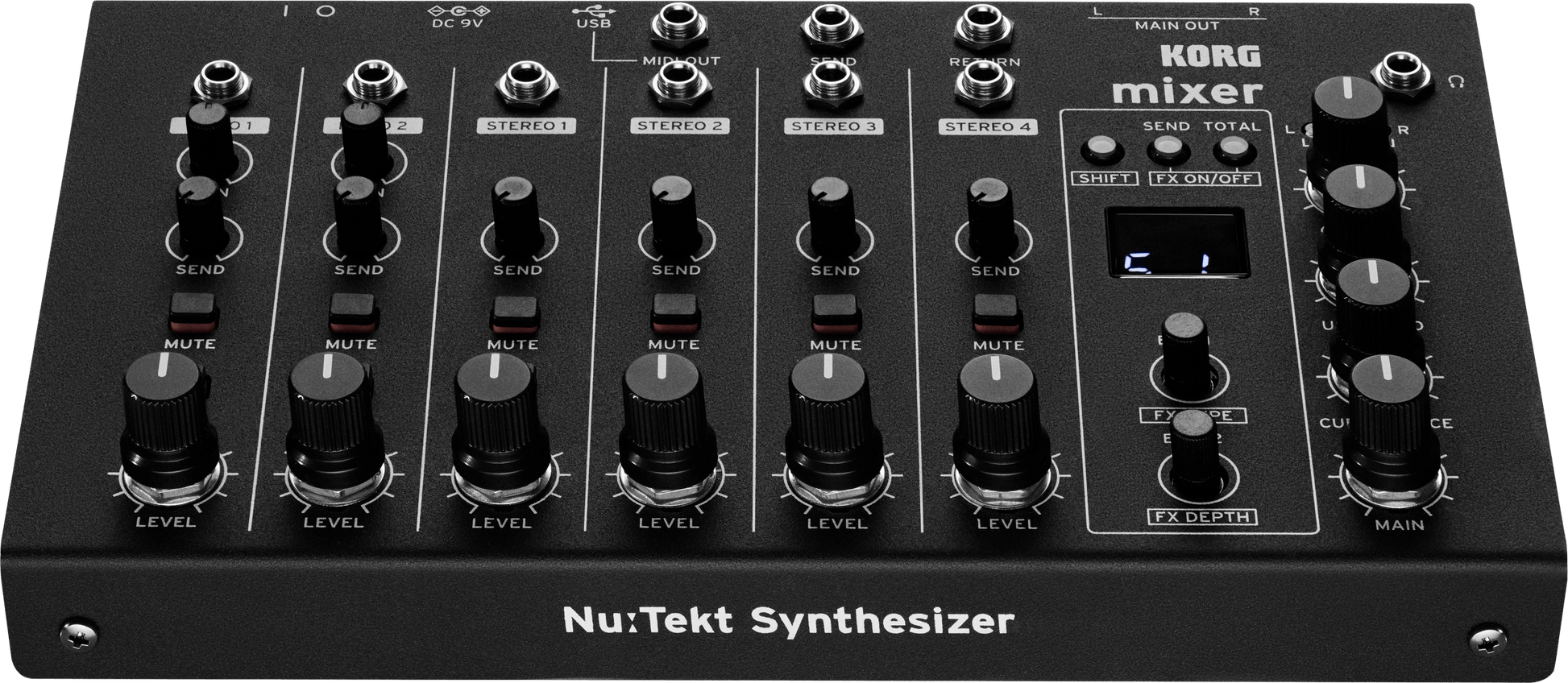

The Korg NTS-4 is a compact DIY performance mixer designed to bring multiple instruments together in one streamlined setup. Built for volca units, NTS instruments, modular gear, desktop synthesizers, and other compact electronic instruments, it offers flexible routing, integrated effects, and USB audio/MIDI connectivity for modern music production and live performance.

Featuring four stereo channels and two mono channels, the NTS-4 can mix up to ten audio signals simultaneously. Every channel includes dedicated level, mute, CUE monitoring, and FX send controls, making it easy to build dynamic performances while maintaining complete control over your mix.

Two independent stereo SEND FX engines provide per-channel effects, while a master TOTAL FX processor adds delay, reverb, modulation, filtering, drive, compression, and more to the overall mix. Designed with Eurorack compatibility, USB-C connectivity, and a rugged steel chassis, the NTS-4 is equally at home in the studio or on stage.

Key Features

• DIY performance mixer kit from the Korg Nu:Tekt series
• Six-channel mixer with four stereo channels and two mono channels
• Supports up to 10 simultaneous audio signals
• Dedicated level, mute, CUE, and FX send controls on every channel
• Mono inputs support both line-level and modular-level signals via a switchable attenuator
• Dedicated SEND and RETURN connections for external effects
• Two independent stereo SEND FX engines
• Master TOTAL FX processor for overall mix processing
• Built-in delay, reverb, chorus, modulation, filtering, drive, distortion, compression, and limiting effects
• 24-bit USB audio and MIDI over USB-C
• MIDI routing from USB to dedicated MIDI OUT
• Dedicated headphone CUE monitoring
• Compact steel chassis for studio and live performance
• Simple DIY assembly with included instructions

Specifications

• Product Type: DIY Performance Mixer Kit
• Channels: 4 Stereo, 2 Mono
• Maximum Audio Inputs: 10 Signals

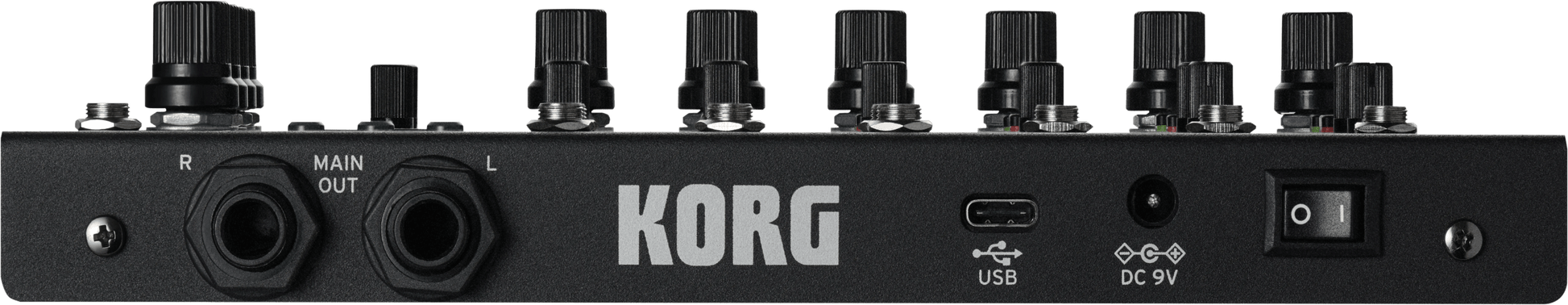

• Main Outputs: L/R 6.3mm Mono Phone Jacks (Unbalanced)
• Headphone Output: 3.5mm Stereo Mini Jack
• SEND Output: 3.5mm Stereo Mini Jack
• Mono Inputs: 2 x 3.5mm Mono Mini Jacks
• Stereo Inputs: 4 x 3.5mm Stereo Mini Jacks
• RETURN Input: 3.5mm Stereo Mini Jack
• MIDI Output: 3.5mm TRS MIDI Out
• USB Port: USB Type-C (24-bit Audio & MIDI)
• SEND FX: Delay, Ping Pong Delay, Hall Reverb A/B, Slap Reverb A/B, Chorus
• TOTAL FX: LPF, HPF, Isolator, Flanger, Phaser, Decimator, Drive, Distortion, Compressor, Limiter
• Display: 3-Digit 7-Segment LED
• Power: USB Bus Power or Optional 9V DC Power Adapter (Sold Separately)
• Power Consumption (No Load): 0.1W
• Dimensions (W × D × H): 195 × 125 × 38mm
• Weight: 613g
• Included Accessories: USB Type-C to Type-A Cable, Precautions/Assembly Instructions
• Optional Accessory: 9V DC Power Adapter
