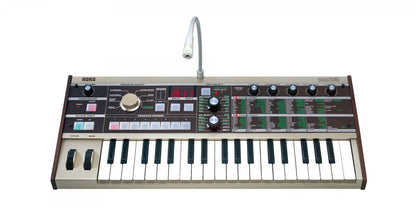

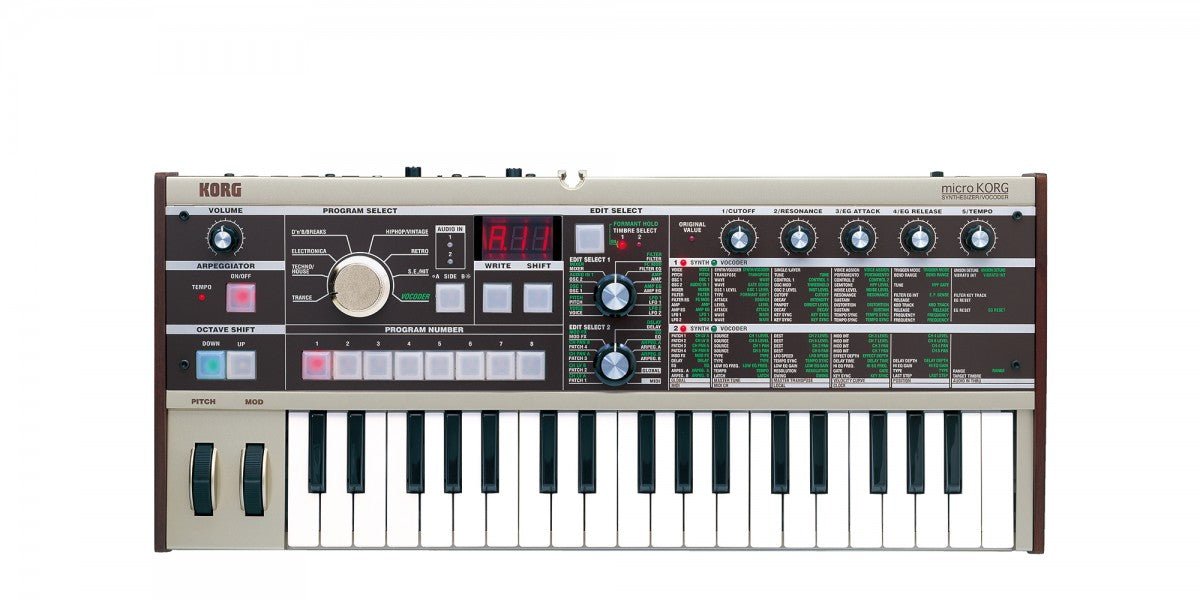

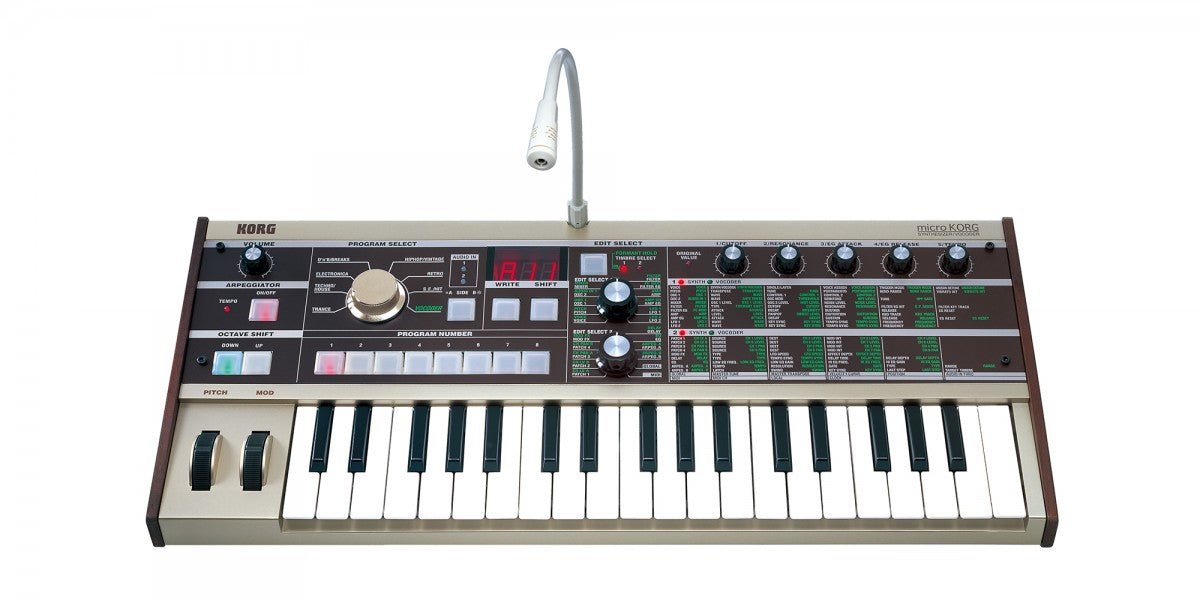

Korg microKORG Mini Key Analog Modeled Synth/Vocoder
Analog modeling and multi-band vocoding in a compact, portable instrument. Miniature keys, classic vintage looks.
Korg Microkorg Synth Vocoder
The microKORG boasts the same dual-oscillator DSP synthesis engine found in Korgās critically acclaimed MS2000 and offers a wider selection of waveforms than any other modeled synth.
Features:
ā¢ Oscillator 1 features a total of 71 waveforms, include traditional analog waves like saw, pulse, sine and noise, plus more unique choices like Vox wave and cross wave
ā¢ Ring and Sync modulation can be applied from Oscillator 2 to create the kind of complex timbres
ā¢ 4 filter modes offer low pass, high pass and band pass configurations plus an extra steep low pass setting. All include resonance
ā¢ 2 classic ADSR envelope generators and two MIDI-syncable LFOs
ā¢ 8-band vocoder with advanced features. You can capture your voice, and then play it across the keyboard, or shift the frequency to sound male, female, like a child or just plain wacky!
ā¢ 2 band EQ, 3 modulation effects and 3 delay effects
ā¢ 6 types of arpeggio patterns
ā¢ 2 external audio input jacks. Run other instruments, CDs and more through the microKORGās filter and effects
ā¢ MIDI
- Specifications
-
Keyboard
37 Mini-Keys, Velocity Sensitive
Polyphony
4 Voice
Multitimbral
2 Part
Synthesis Method
Analog Modeling Synthesis System
Presets
128 Programs
User Memory
128 Programs
Effects
Modulation Effects:
1 x Flanger/Chorus
1 x Phaser
1 x Ensemble
Delays:
1 x Stereo
1 x Cross
1 x L/R
Equalizer
Sequencer
Arpeggiator
Controllers
1 x Modulation Wheel
1 x Pitch Wheel
5 x Assignable Parameter Control Knobs
2 x Edit Select/Assignable Control Knobs
8 x Program Select/Assignable Buttons
2 x Mic/Line Switches
Expansion Slots
No
Sample RAM
No
Outputs
2 x 1/4" TS Jacks(Left/MONO, Right), Unbalanced
1 x 1/4" TRS Stereo Headphone
MIDI Out
MIDI Thru
Inputs
Audio In 1 Condenser: 1 x +5 Volt Mini Phone (included)
Audio In 1 Dynamic: 1 x 1/4" TS Phone, Unbalanced
Audio In 2 Line: 1 x 1/4" TS Phone, Unbalanced
MIDI In
Headphone Output
Yes, 1/4" TRS Stereo Phone
SCSI
No
Internal Storage
No
External Storage
MIDI System Exclusive
Display
3-Digit x 1 Line, 8-Segment LED
Dimensions
20.63 x 9.13 x 2.76" (524 x 232 x 70mm)
Weight
4.85 lb (2.2 kg)
Specialties
Condenser Mic and Vocoder
Master MIDI Controller Keyboard Capability
AA Battery or AC Powered
