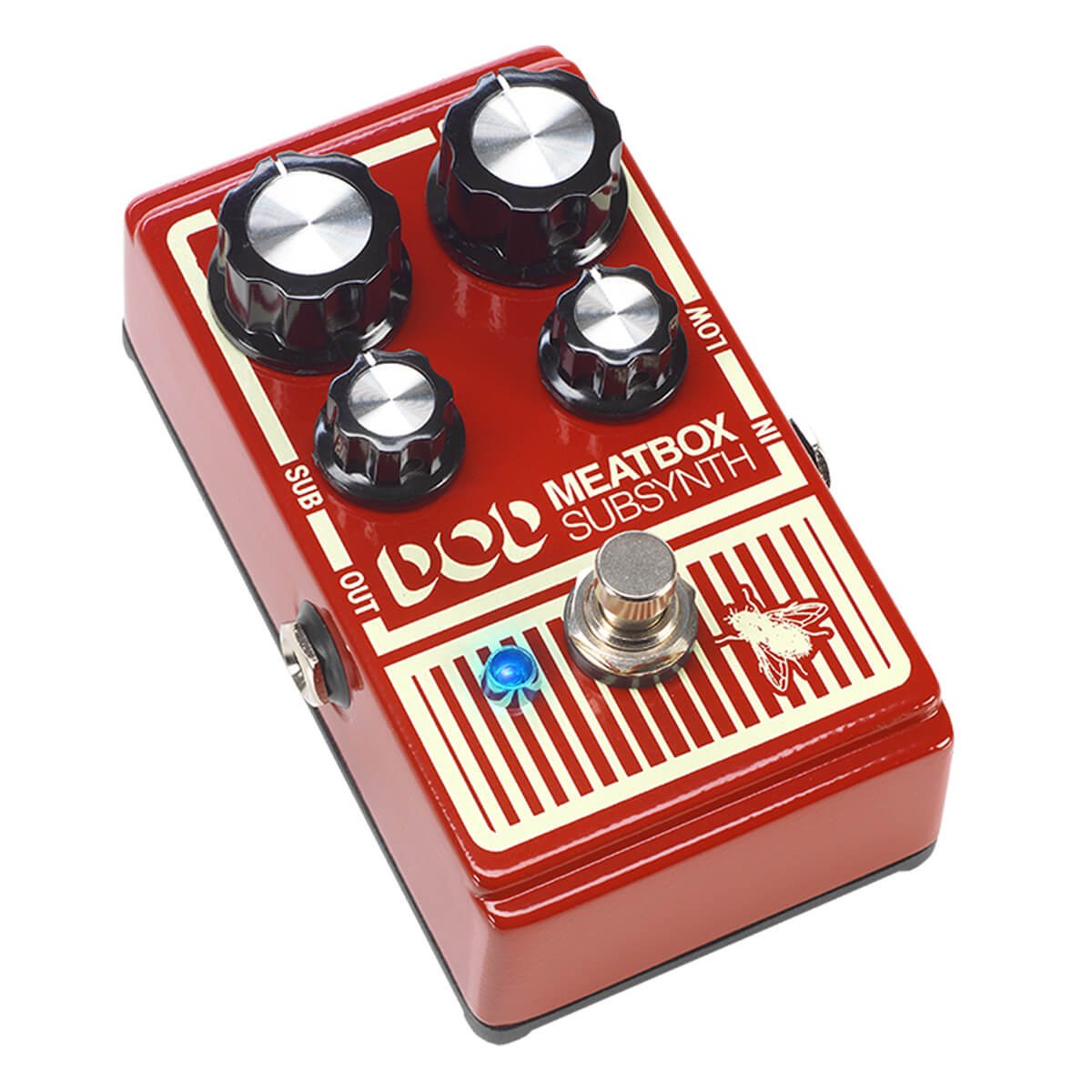

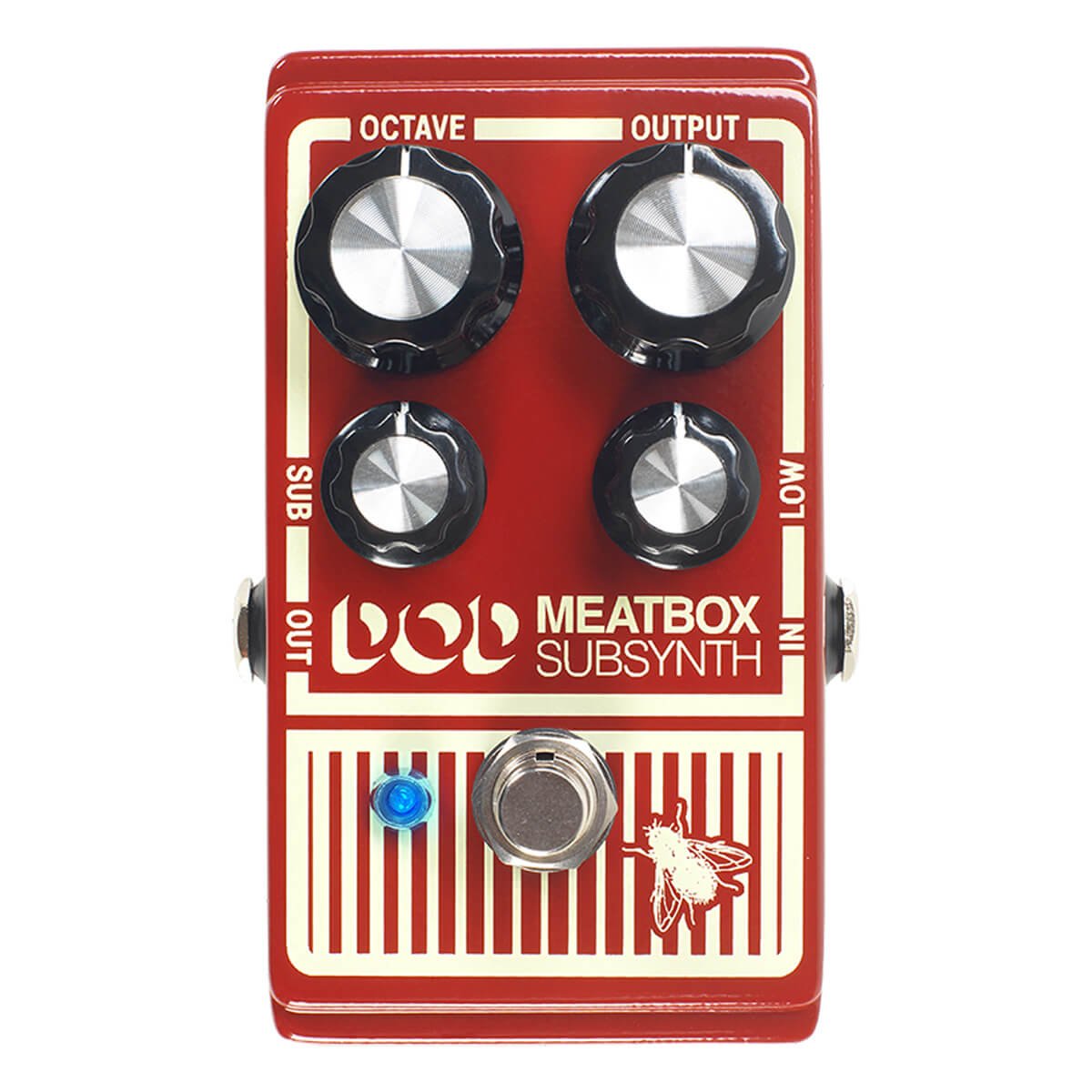

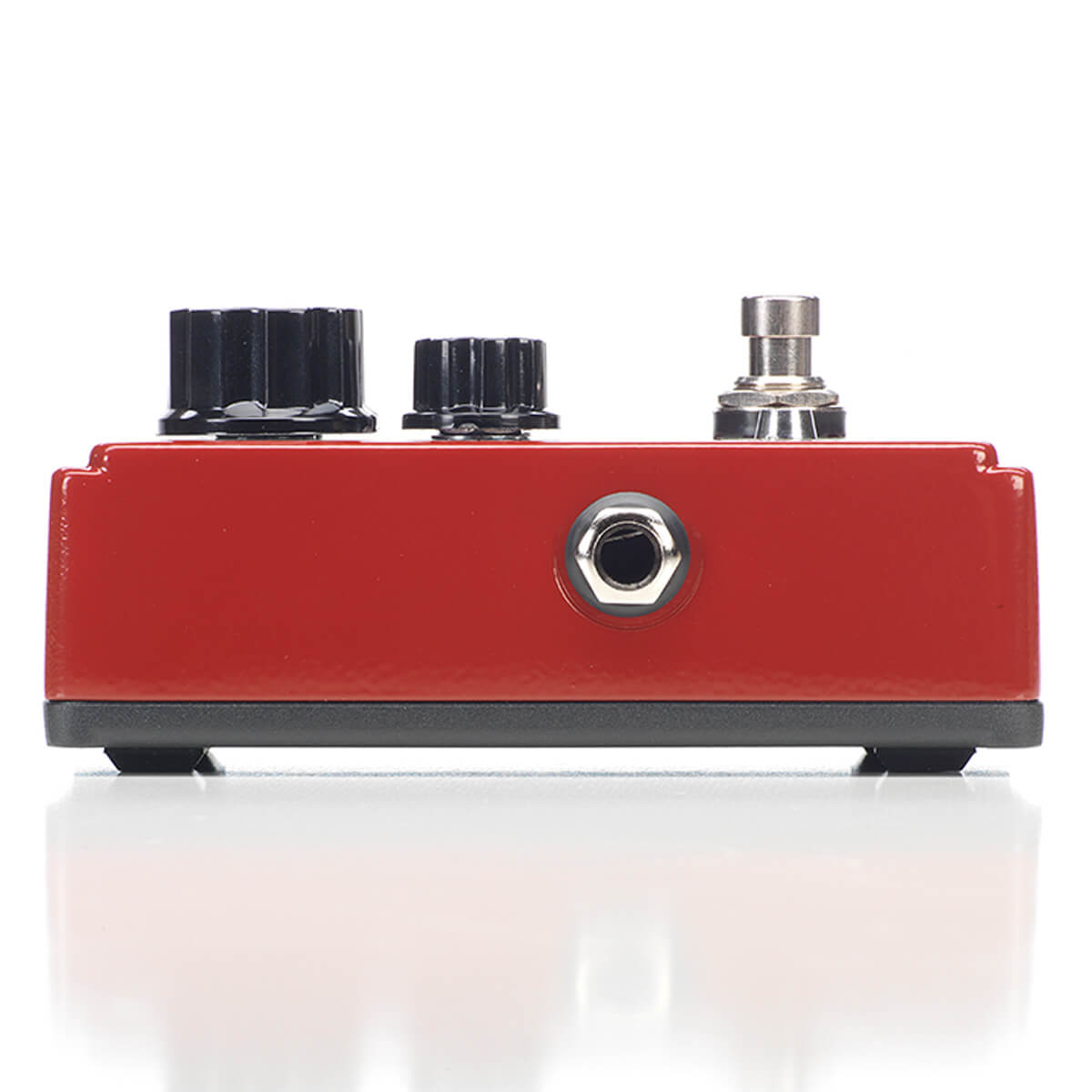

DOD Meatbox Octaver + Subharmonic Synthesizer Pedal
More than just an octaver, the Meatbox is a thick-cut subharmonic synthesizer as well. Adding in sub notes so low that you need to be careful not to blow your speakers
DOD Meatbox Octaver + Subharmonic Synthesizer Pedal
More than just an octaver, the Meatbox is a thick-cut subharmonic synthesizer as well. Adding in sub notes so low that you need to be careful not to blow your speakers. A TRS out allows you to split the subharmonic synthesized signal out to the P.A. for teeth-rattling, bone wrenching, bowel-shaking, booty-quaking bass that will rock the house, literally.
Answering the call of low frequency freaks everywhere, the DOD Meatbox is an updated take on the cult favorite Meatbox from the ‘90s.
Based on the iconic DOD Meatbox circuit design with updated components
True Bypass and new crisp blue LED status indicator
TRS Output
General Specifications
Input: 1 x ¼” instrument
Output: 1 x ¼” TRS (Tip = Octave +Sub, Ring = Dry, Sleeve = Ground)
Chassis Material: All Metal
Power Supply: 9V Alkaline Dry Battery or Optional Power Supply
Dimensions
Height: 2.25” (5.71 cm)
Width: 2.63” (6.68 cm)
Length: 4.68” (11.88 cm)
Weight: 0.62 lbs. (0.281 kg.)
