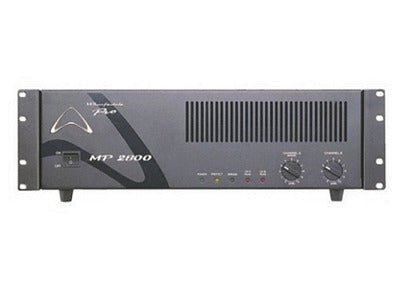

Wharfedale Pro MP2800 Power Amplifier
Offers significant power output at 8 ohms, 4 ohms, and 2 ohms per channel, and in bridged mono mode, Utilizes Class H topology for efficient power
Wharfedale Pro MP2800 Power Amplifier
MP 2800 amplifier is ultra-reliable, high-current power amplifiers designed to work in the most demanding applications. Massive toroidal transformers, automatic, variable-speed fan cooling and a series of advances protection features ensure that MP amplifiers will deliver the ultimate in sonic accuracy under the most rigorous operating conditions.
Features & Specifications:
- High-end power amps with optional bridged mono operation mode
- Built in toroidal transformer
- Rear panel ground lift switch
- Class H Topology
- All steel construction
- Continuously variable speed fan
- Sophisticated protection circuitry including; Soft start protection relay;
- Thermal overload protection; Short circuit protection; Open circuit protection
- Front controls including: Power Switch, Channel A and Channel B gain controls
- Front panel LED indicators for Power On, Peak, Protect
- Stereo/Bridge Mode switch on rear of unit
Specifications:
Model: MP2800
INPUT SENSITIVITY:
• AT 4 OHMS 0.775v
• UNBALANCED 1/4" JACK 10Kohms
• BALANCED XLR 20Kohms
CONNECTORS:
• INPUT XLR & 1/4"TRS
• OUTPUT 5 way binding post & speakon or speakon
POWER: PER CHANNEL (1% THD)
• 8 OHMS 600W
• 4 OHMS 950W
• 2 OHMS 1450W
BRIDGED MONO MODE (1% THD):
• 8 OHMS 1700 Watts
• 4 OHMS 2700 Watts
VOLTAGE GAIN: 38dB
SLEW RATE: STEREO >40v/u sec
CHANNEL SEPARATION: 78dB
SIGNAL TO NOISE (20HZ-20KHZ): 100dB
DISTORTION (SMPTE-1M): less than 0.05%
FREQUENCY RESPONSE:
• +/-1DB @ 4 OHMS 20Hz to 20kHz
• +/-3DB @ 4 OHMS 5Hz to 50kHz
DAMPING FACTOR: Greater than 400
TOPOLOGY: H
COOLING: VARIABLE SPEED FAN
DIMENSIONS (HXWXD):
• MM 133 x 483 x 355 mm
• INCHES 5.2 x 19 x 13.9 inches
• DIMENSIONS & WEIGHT
• NET WEIGHT ( KG / LBS ) 28kg / 61.6 lbs
• GROSS WEIGHT ( KG / LBS ) 29.5kg / 65 lbs
