Shure SLXD24/B58 Digital Wireless Handheld Microphone System with Beta 58A Capsule
The Shure SLXD24/B58 Digital Wireless Handheld Microphone System with Beta 58A Capsule offers presenters and performers a wireless handheld microphone system that's dependable, easy to set up, and features crystal-clear, digital sound quality. Built around a rugged, single-channel, half-rack receiver with removable antennas, the system is ideally suited for portable rigs or long-term installations in small- to medium-sized venues, event spaces, conference rooms, houses-of-worship, and education facilities.
The SLX-D operates in the UHF band to transmit high-quality, 24-bit digital audio with over 120 dB of dynamic range for crisp, detailed sound. It utilises Digital Predictive-Switching Diversity to protect the transmission from interference and deliver a solid, reliable RF signal without dropouts.
This configuration includes the SLXD2 handheld transmitter featuring an interchangeable microphone capsule design and equipped with a Beta 58A dynamic capsule. The mic's supercardioid pickup pattern focuses on speech, helping to reduce feedback on loud stages. The lightweight metal transmitter features a selectable 1/10mW RF power output and a transmission range up to 100m. It provides up to 8 hours of operation on two AA batteries or an SB903 rechargeable battery (available separately).

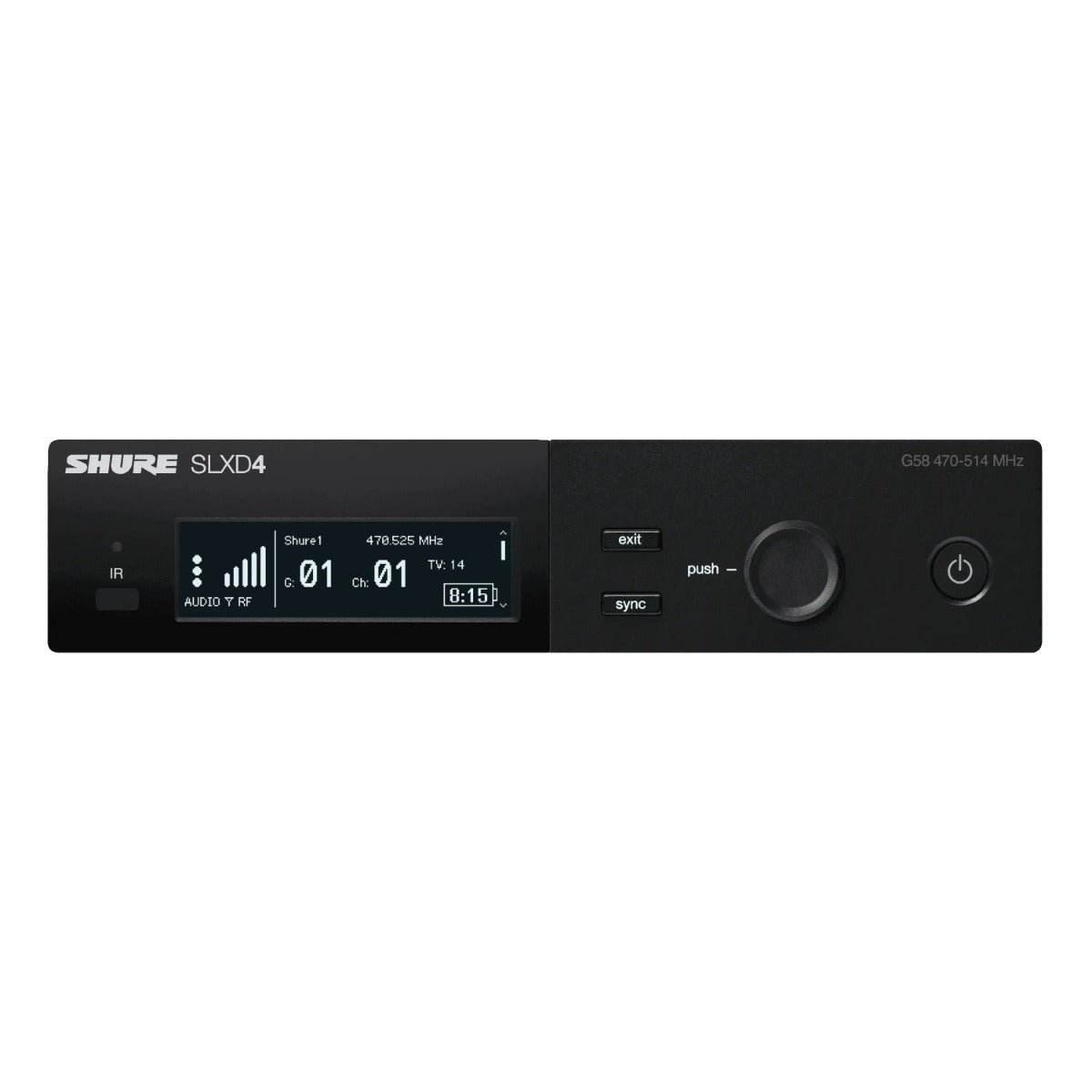

The all-metal, rackmount SLXD4 receiver features an intuitive LCD interface with metres for RF, battery status, and audio output. It also offers 60 dB of gain control, and both mic/line XLR and 1/4" instrument outputs. Additional features include automatic frequency scanning and IR sync to easily link the transmitter and receiver to the same frequency.
With up to 32 mic channels available at the same time, the SLX-D is ready to expand as your needs grow. What’s more, setting up multiple systems is made fast and easy via the Ethernet port, which links the them together for quick, coordinated frequency scans from a single receiver.
Wireless Workbench
Wireless Workbench is a free software for audio professionals that puts a full suite of RF spectrum management tools in one place to give you full command of your compatible wireless devices. Guarantee that you are prepared to succeed in any RF environment – no matter the location.
Wireless Workbench helps you set up and manage your networked wireless devices. Quickly perform RF scans and identify & deploy frequencies to your devices in just a few clicks for maximum efficiency. Once the production begins, remotely monitor the RF for every piece of Shure wireless gear to ensure a successful production.
Handheld Transmitter with Beta 58A Dynamic Supercardioid Capsule
- With durable aluminium housing, the SLXD2 handheld transmitter offers a lightweight design that's comfortable to hold, and it features an LCD to show essential information.
- The Beta 58A dynamic microphone capsule is designed for close-up vocals, with brightened midrange and bass roll-off to control proximity effect. The capsule features a supercardioid polar pattern that ensures high gain before feedback, maximum isolation from other sound sources, and minimum off-axis tone colouration.
- The transmitter's interchangeable capsule design allows you to choose the ideal capsule for your application. Shure offers a variety of optional dynamic and condenser mic capsules with varying pickup patterns—capsules include the Beta 87A, SM58, and KSM8.
Transparent Digital Sound, Dependable Performance, and More Mics
- The SLX-D delivers 24-bit digital audio with a fast transient response and over 120 dB of dynamic range—resulting in clear, accurate sound.
- Digital Predictive Switching Diversity uses a microprocessor to switch between the two antennas for the cleanest signal—before dropouts occur.
With a low latency of 3.2 ms, the system is ideal for events that require live sound reinforcement. - The SLX-D's spectrum-efficient digital transmission technology allows for up to 32 mics to be used at once.
- Ethernet networking saves you time with coordinated group scanning between multiple receivers from a single location; TCPI command streams from third-party companies such as AMX and Crestron are also supported.
Ready to Rackmount, Easy to Use
- Housed in a tough, half-rack metal chassis with detachable antennas, the SLXD4 receiver is a great fit for A/V installations or as part of a portable rackmount rig—ready to travel to a meeting or event.
- The SLX-D is engineered to provide outstanding sound for small- to medium-sized spaces and facilities—without costly, complicated features required primarily for large venues.
- Intuitive front-panel controls and a high-contrast LCD screen with audio and RF metres makes set up a snap.
- The auto-scan function automatically seeks out the cleanest available frequency for you. The receiver and transmitter then easily link to the same frequency via infrared.
- The receiver offers up to 60 dB of adjustable gain and the display shows you where the ideal level should be.
Enhance the Reliability of Your System
- Adding UA874 active antennas or PA805SWB passive antennas increases the range of your system and offers increased protection against interference.
- The UA844+SWB antenna distribution system (available separately) lets you stretch the power of your antenna pairs, giving you more on-air channels in less setup time.
Specifications:
System
- Wireless Transmission: Digital UHF
- Number of RF Channels: 1760
- Included Transmitters: 1 x Handheld
- Diversity: True Digital Diversity
- Frequency Step Size: 25 kHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 328' / 100 m
- Max Systems per Setup: 32
- Sample Rate/Resolution: 24-Bit
- Latency: 3.2 ms
- Dynamic Range: 120 dBA (Typical)
- Encryption: None
Receiver
- Form Factor: Tabletop / Rackmount
- Mounting Options: Rackmount (with Included Hardware)
- Rackmount Size: 1 RU (1/2 Rack)
- Antenna: 2 x 1/4 Wave External, BNC (Rear-Mount)
- Number of Audio Channels: 1
- Audio I/O:
1 x XLR 3-Pin Male Balanced Mic/Line Output
1 x 1/4" TRS Female Balanced Output (Lockable) - Gain Range: 0 to +21 dB (3 dB Steps)
- Pad: 30 dB
- Audio Output Level: -18 to +42 dB (Balanced, Unbalanced)
- Phantom Power Protection: On 1/4", XLR Outputs
- Frequency Response: 20 Hz to 20 kHz +1/-2 dB (Dependant on Mic)
- Network I/O: 1 x RJ45 (10/100 Mb/s)
- Nework Protocols: DHCP, Manual IP
- Impedance:
1/4" Output: 1.3 Kilohms (Balanced)
670 Ohms (Unbalanced) - XLR Output:
400 Ohms (Balanced)
150 Ohms (Balanced) - Adjacent Channel Isolation: >70 dB
- Spurious: Rejection: >75 dB
- Power Requirements: AC/DC Power Adapter
- AC/DC Power Adapter: 15 VDC at 600 mA, Centre-Positive (Included)
- AC Input Power: 100 to 240 VAC, 50 / 60 Hz
- Display & Indicators: LCD (AF Level, Channel, Frequency, Group, RF Level,
- Sync, Transmitter Battery Status)
- Housing: Steel
- Operating Temperature: 0 to 122°F / -17 to 50°C
- Storage Temperature: -20 to 165°F / -28 to 73°C
- Dimensions: 7.8 x 1.7 x 6" / 197 x 42 x 152 mm
- Weight: 1.8 lb / 816 g (without Antenna)
Transmitter
- Form Factor: Handheld
- RF Output Power: 1 / 10 mW
- Audio I/O: None
- Pad: None
- Muting: None
- Audio Input Level: 8.2 dBV
- Auto-Level Control: No
- Gain Range: 0 +21 dB
- Signal Processing: None
- Frequency Response: 20 Hz to 20 kHz (Dependant on Mic)
- Sync Method: IR
- Antenna: Internal Single-Band Helical
- Power Requirements: Battery
- Battery Type:
2 x AA (Included)
1 x Shure SB 903 (Not Included) - Battery Charging Time: 1.25 to 5.5 Hours
- Approx. Battery Life:
8 Hours (Lithium Shure SB903)
8 Hours (Alkaline) - USB/Lightning Connectivity: None
- Display & Indicators: LCD (Battery Status, Channel, Group, Power)
- Housing: Aluminium
- Operating Temperature: 0 to 122°F / -17 to 50°C
- Storage Temperature: -20 to 165°F / -28 to 73°C
- Dimensions: 1.5 x 6.9" / 37.1 x 176 mm
- Weight: 5.2 oz / 147 g
Microphone
- Form Factor: Handheld Capsule
- Colour: Black
- Sound Field: Mono
- Capsule: Dynamic
- Polar Pattern: Supercardioid
- Frequency Range: 50 Hz to 16 kHz
- Sensitivity: -51 dBV/Pa
- CMRR: None
- Diameter: 2.01" / 51 mm
