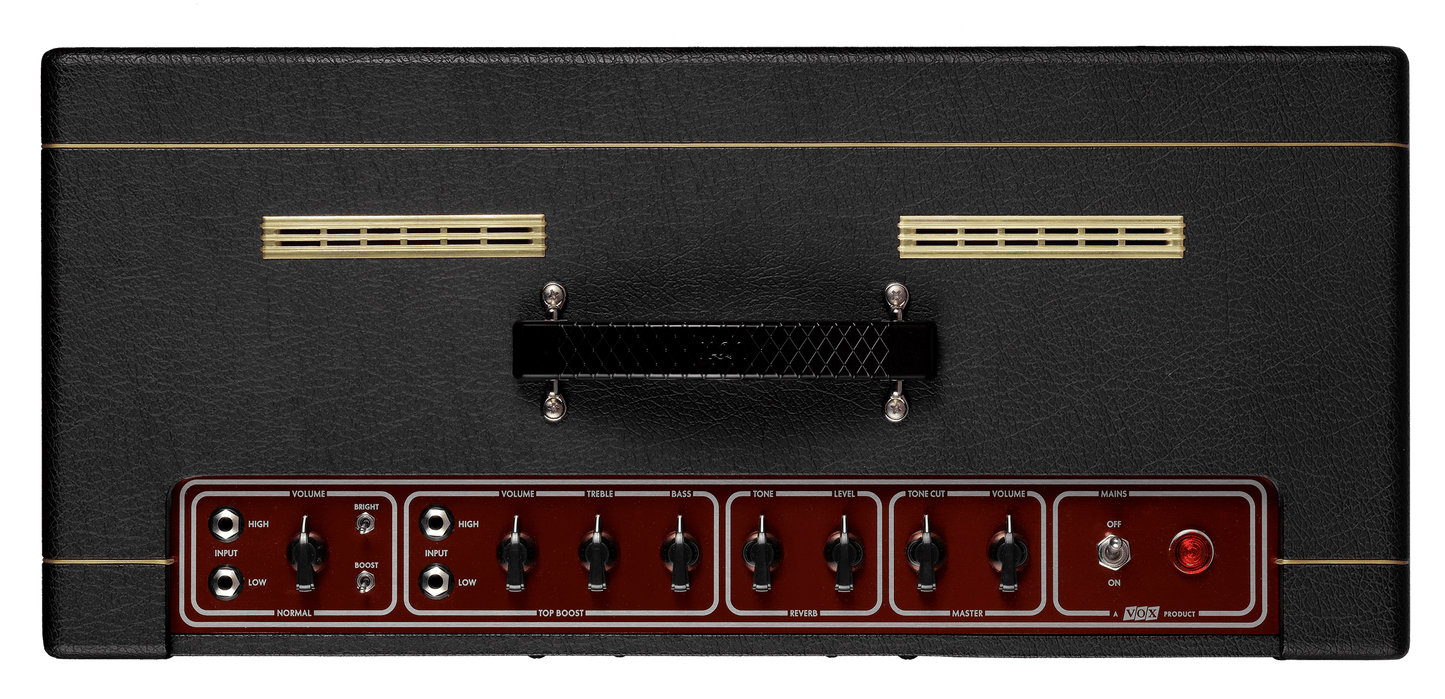

Vox AC15HWR1X Hand‑Wired 15-Watts Tube Combo Amplifier with Alnico Blue Speaker
The Vox AC15HWR1X is a fully hand‑wired tube combo amp delivering 15-Watts of classic Vox chime and saturation. Featuring turret‑board construction, a single Celestion Alnico Blue speaker, dual channels with toggle switches, spring reverb, FX loop, and a half‑power mode for studio or stage use
Vox AC15HWR1X Hand‑Wired 15-Watts Tube Combo Amplifier
Step into the golden era of Vox tone with the Vox AC15HWR1X Hand‑Wired Combo Amp. Crafted with authentic point‑to‑point turret board wiring and premium components, it delivers rich, dynamic tube saturation, classic chime, and expressive responsiveness.
Key Features
- 15-Watts RMS Output: Delivers powerful tube tone at either full or half‑power for flexible volume control.
- Hand‑Wired Turret Board Construction: Traditional point‑to‑point wiring ensures minimal signal loss and enhanced reliability.
- Tubes & Speaker: Equipped with matched Ruby ECC83/12AX7 preamp tubes, EL84 power tubes, EZ81 rectifier, and a single 12″ Celestion Alnico Blue speaker for vintage warmth and sparkle.
- Two‑Channel Design with Toggle Switches: Normal channel includes a Bright switch; Top Boost channel features Hot/Cool switch for added gain. Includes a Master Volume bypass switch and OP Mode to halve the output wattage.
- Classic Spring Reverb & FX Loop: High‑quality reverb adds atmospheric depth, while the FX loop ensures pristine effect integration.
- Vintage‑Style Cabinet: Birch plywood construction with natural bracing and thinner wood profile enhances midrange definition and tonal resonance. Covered in fawn‑coloured vinyl for retro flair.
- Extension Speaker Output & Footswitch: Connect an external cab or attenuator; includes VFS1 footswitch for toggling the Hot/Cool mode.
Why You'll Love It
This amp is not just inspired by vintage Vox design — it's built with it in mind. Based on years of study of pristine 1960s-era models, the AC15HWR1X reproduces the coveted sag, compression, and harmonic richness of the originals while adding modern conveniences for today’s gigging and studio musicians.
Specifications:
- Power Output: 15-Watts RMS, switchable to 7.5-Watts (OP Mode), at 8 Ω or 16 Ω
- Preamp Tubes: 3× ECC83/12AX7 (Ruby-matched)
- Power Tubes: 2× EL84; Rectifier: EZ81 tube
- Speaker: 1× 12″ Celestion Alnico Blue, 16 Ω
- Inputs: High & Low jacks for both Normal and Top Boost channels
- Controls: Normal Volume with Bright; Top Boost Volume, Bass, Treble with Hot/Cool; Master Volume, Tone Cut
- Physical Dimensions: ~24.0" W × 10.24" D × 21.65" H (610 × 260 × 550 mm)
- Weight: ~49 lbs (22 kg)
The Vox AC15HWR1X is the choice amplifier for players who demand vintage voice, modern reliability, and stage-ready flexibility—all in a compact 15-Watts package.
